Elo Edge Connect™ Status Light

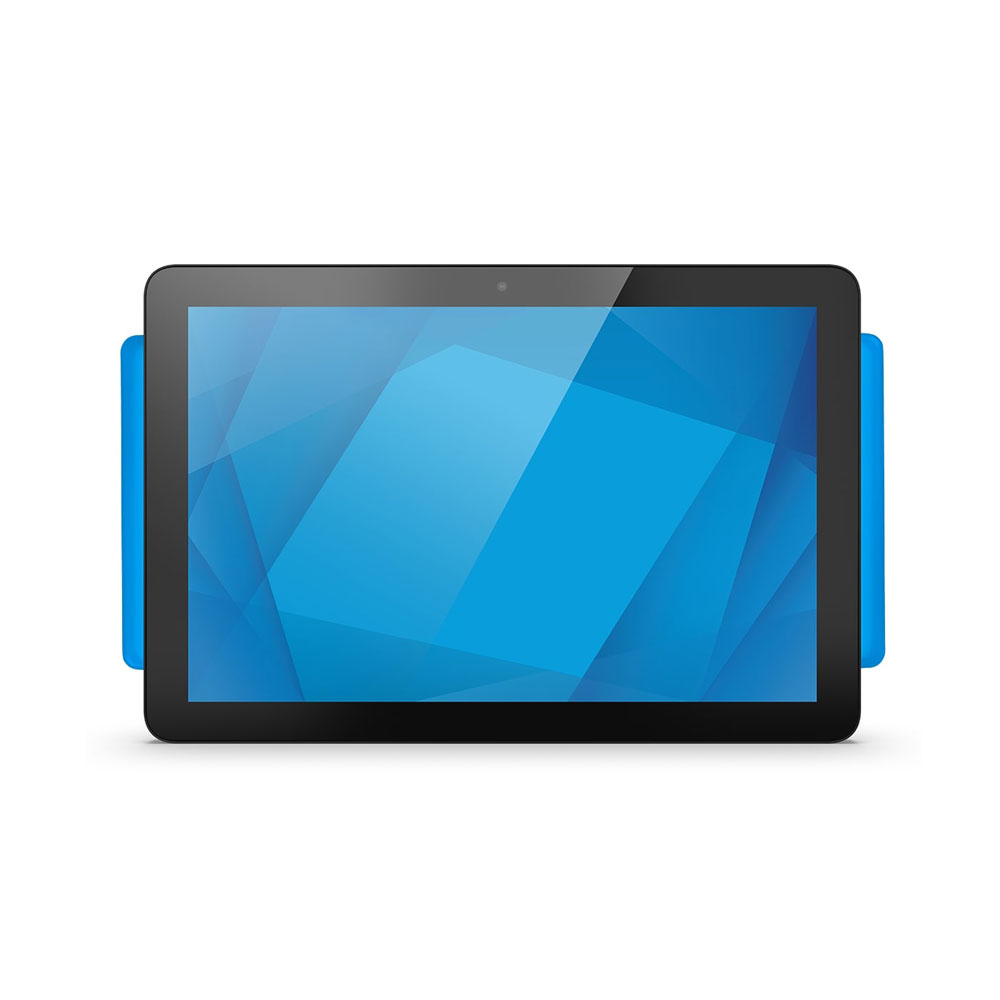

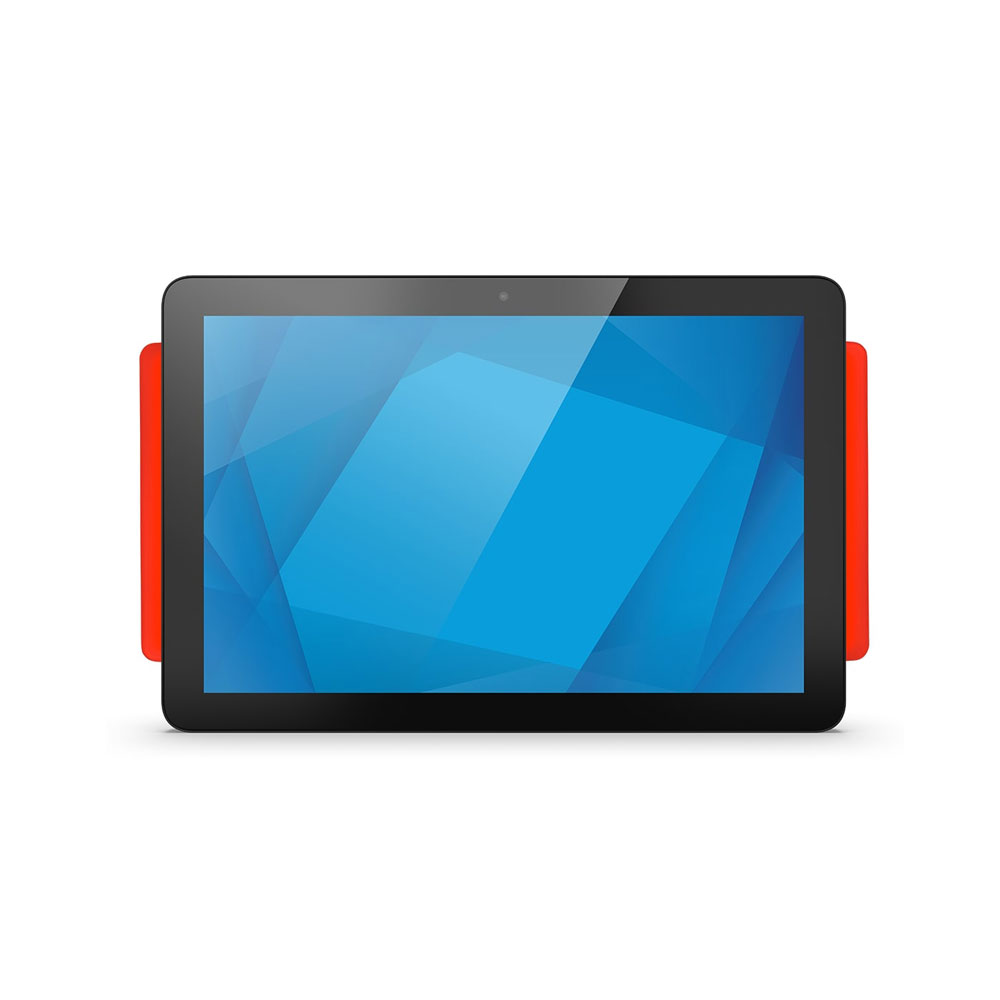

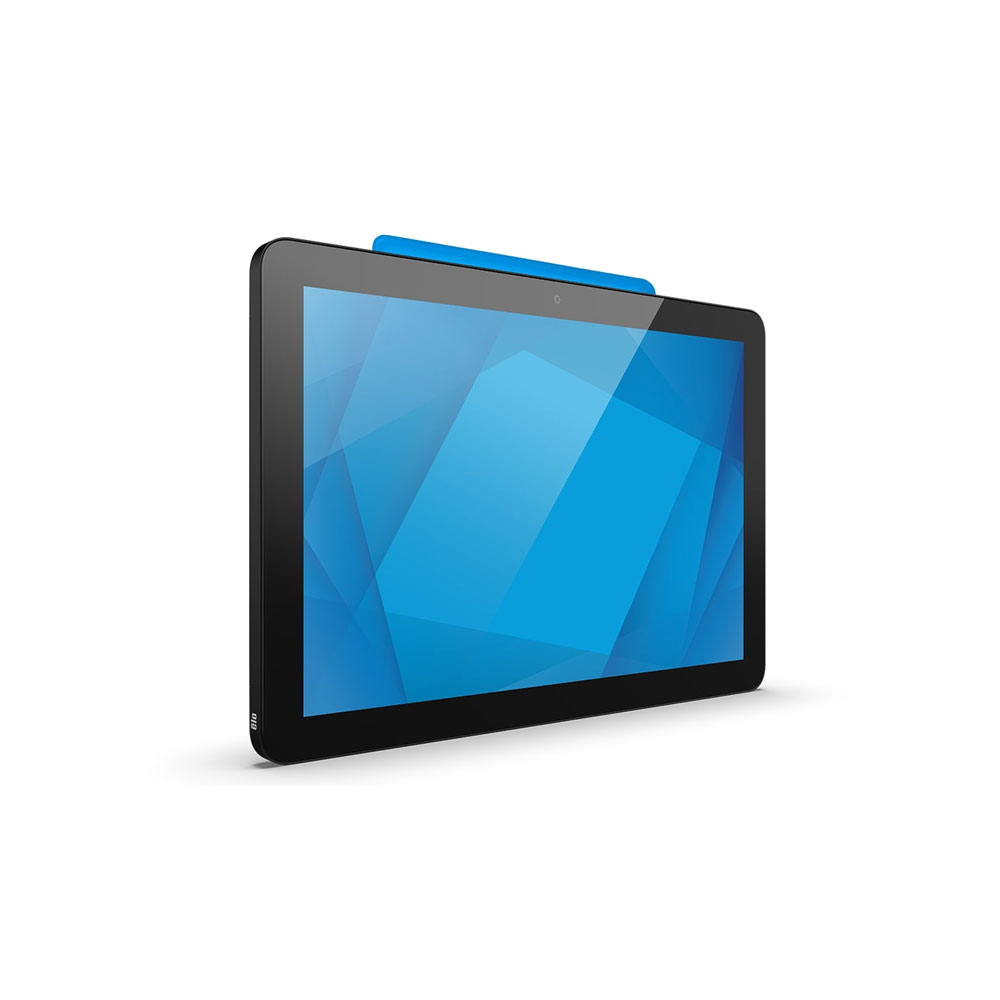

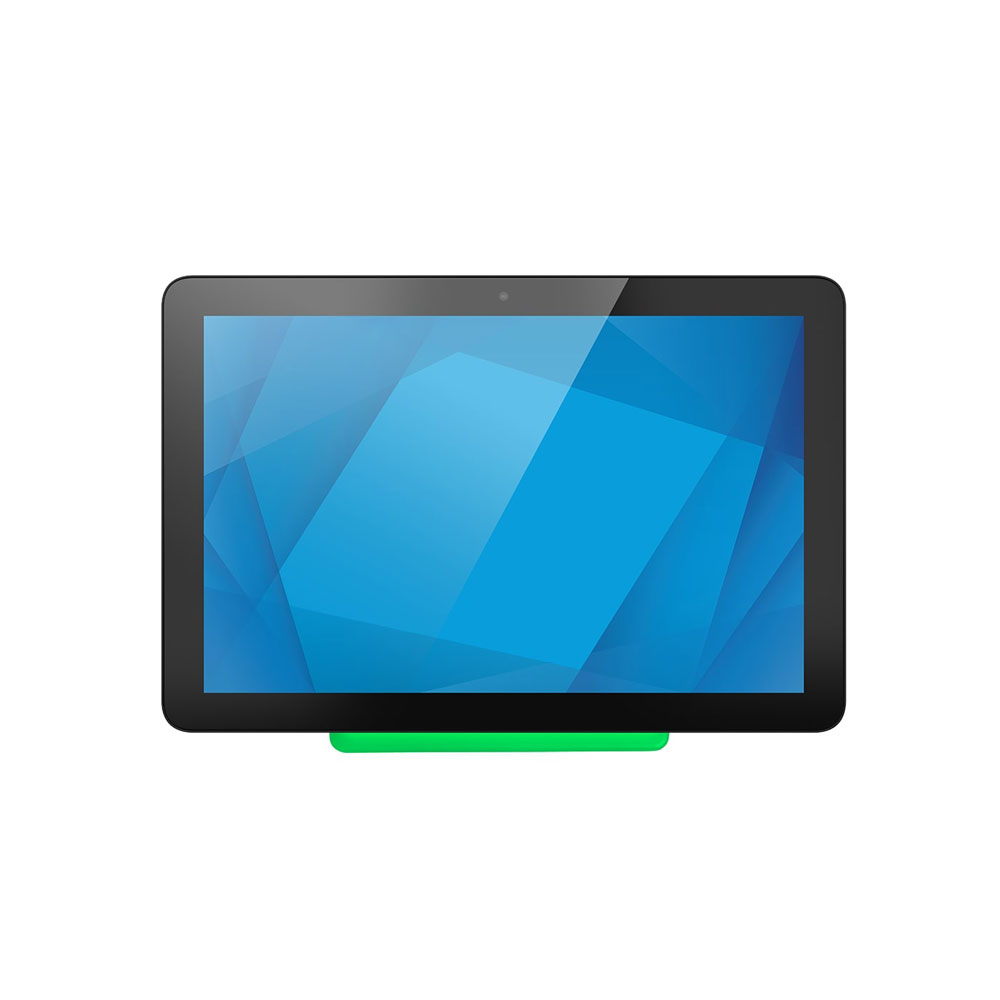

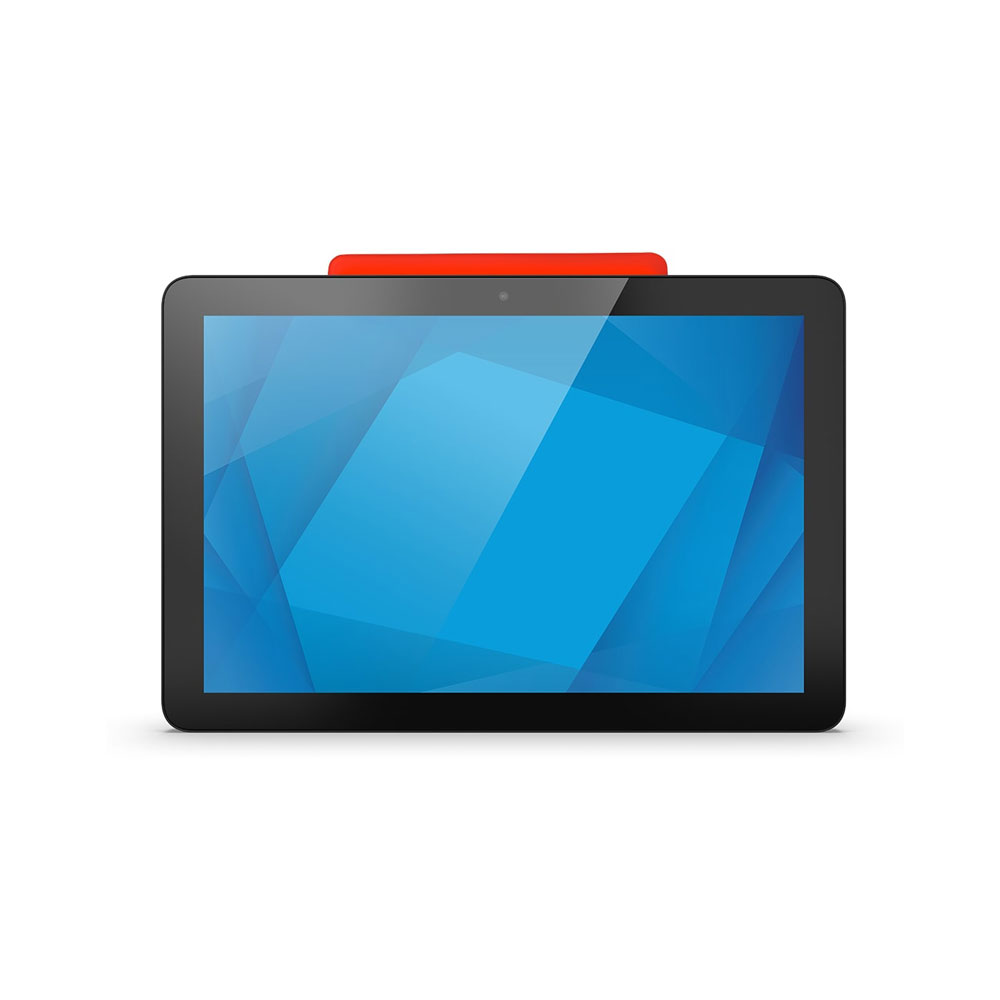

The Elo Edge Connect Status Light provides a sleek, low profile solution for highlighting status and availability for various applications on your favorite Elo products. From conference room availability to self-checkout (SCO) lane readiness, the Status Light easily attaches to the Micro USB ports located on the edge of the touchscreen displays. And, to make managing your solution easy, Elo provides a set of APIs through the EloView® SDK, allowing you to control the status lights via your own APIs.

CategoriesAccessories

Description
Additional information

Specifications

Part Number(s)	E644767
Enclosure Color	Black
Compatibility	I-Series for Android I-Series for Windows EloPOS Touchscreen Monitors – 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L Touchscreen Signage – 3202L, 3203L, 4202L, 4303L, 4602L, 5053L, 5502L, 5503L, 5553L, 6553L
Input Connector Type	Micro-USB
LED	Red (default), and RGB LED lights offer various color illumination. Please download SDK from Elo Support website for custom programming.
Input Voltage	5.0VDC
Dimensions	4.72” x 0.75” x 1.02” / 119.9 mm x 19.1 mm x 26.0 mm
Shipping Box Dimensions	7.165” x 5.709” x 1.693” / 182 mm x 144 mm x 43 mm
Weight (Unpackaged)	0.07 lbs / 0.03 kg
Weight (Packaged)	0.265 lbs / 0.12 kg
Warranty	2-year
What’s in the Box	1x Status Light with Micro-USB connector 2x Mounting screws 2x Mylar screw covers QIG

Additional information

Category	Peripherals & Accessories
