Windows Computer Modules (ECMG4) – for IDS 03/53-Series

Categories,

Fitur & Manfaat Produk

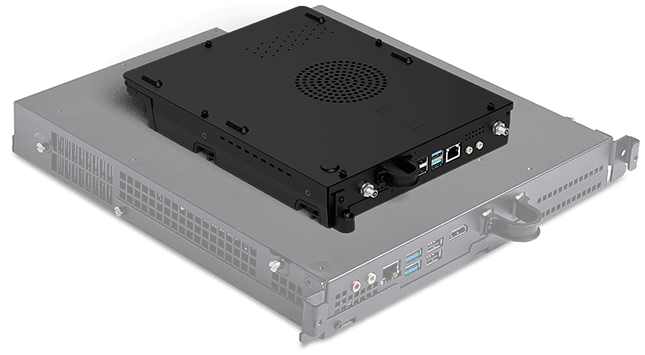

Bentuk yang lebih kecil

Dengan dimensi 11.07×8.2×1.7 ECMG4  yang baru adalah 47% lebih kecil dibanding dengan model sebelumnya, sehingga menghasilkan mini pc dengan biaya yang lebih rendah dan konsumsi energi yang lebih rendah, serta lebih mudah dipasang dan dirawat.

Smaller Form Factor

Fitur Utama

  • CPU

Intel Core i5-7500T

  • GPU

Intel HD Graphics 630

  • Chipset

Intel H110 Chipset

  • OS

Windows 10 Enterprise 2019 LTSC 64-bit,
Windows 10 Enterprise 2019 SAC 64-bit or no OS

  • RAM

8 GB DDR4-2400 MHz SO-DIMM on
1 of 2 slots (expand to 64 GB) OS

  • Penyimpanan

256GB m.2
Solid State Drive (SSD)

Pemasangan yang Mudah

Modul Komputer Elo IDS dapat dipindahkan ke bagian belakang layar sentuh untuk menghadirkan komputer layar sentuh all-in-one format besar, kelas komersial tertipis di industri. Pemasangannya mudah dilakukan tanpa memerlukan kabel eksternal. Daya AC, sinyal video dan USB melewati antara modul komputer dan layar sentuh Elo IDS melalui konektor docking internal.

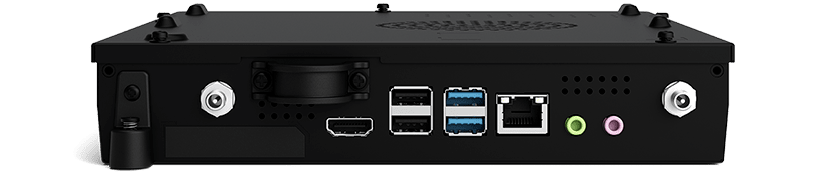

Koneksi

Connections

  • LAN
  • 2x USB 2.0
    Type A
  • 2x USB 3.0
    Type A
  • HDMI
  • 3.5 mm line
    out & mic in

Siap Dikolaborasikan

Gabungkan fleksibilitas Elo 03/53-Series Interactive Boards dengan  intuitive dashboard, berbagi konten dengan perangkat yang Anda miliki tanpa hambatan, serta perangkat lunak anotasi dan papan tulis yang tangguh, sehingga dapat memberikan manfaat yang tak terhingga bagi karyawan dan perusahaan. Dari peningkatan efisiensi hingga biaya yang terkontrol – mulailah menghubungkan tim dan informasi secara real time untuk memperkuat pengambilan keputusan yang lebih baik, lebih cepat, lebih dapat diandalkan, dan meningkatkan kinerja kolaborasi kerja.

Dirancang untuk bertahan lama

Modul Komputer Elo memberikan kualitas dan reliabilitas. Elo dikenal dengan dan didukung oleh garansi standar 3 tahun dengan perpanjangan opsional hingga 4 atau 5 tahun. Kami merancang dan membangun solusi lengkap, dengan sentuhan yang terintegrasi sejak awal.

Spesifikasi

Nomor Produk5-7500 ECMG4 – No OS – Elo P/N: E227895
i5-7500 ECMG4 – Windows 10 (LTSC) – Elo P/N: E228087
i5-7500 ECMG4 – Windows 10 (SAC) – Elo P/N: E725044Compatible with
3203L TouchPro
4303L TouchPro and IR
5053L TouchPro and IR
5503L TouchPro and IR
5553L TouchPro and IR
6553L TouchPro and IR
Warna EnclosureBlack
ProcessorIntel Core i5-7500T Processor
(6M Cache, up to 3.30 GHz)
6 MB Intel Smart Cache
8 GT/s Direct Media
Interface 3 (DMI3)
ChipsetIntel H110 Chipset
GraphicsIntel HD Graphics 630
BIOSAMI
Memory (RAM)8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots
16 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (E405488 only)*Maximum memory using 2 slots. Expandable to 64 GB maximum on 2 slots. DDR4-2133/2400 @ 1.2V
Penyimpanan256GB m.2 Solid State Drive (SSD)

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

WirelessIEEE 802.11 a/b/g/n/ac (downlink MU-MIMO)
BluetoothBluetooth 5
USB Ports2 x USB 2.0 Type A
2 x USB 3.0 Type A
Ethernet Port1 x LAN RJ45
Audio Ports1 x 3.5 mm Line out
1 x 3.5 mm MIC in
Video Out1 x HDMI (UHD capable)
OSNo OS
Windows 10 64-bit (SAC)
Windows 10 Enterprise 2019 LTSC 64-bit
Pasokan DayaPower provided by IDS display
Dimensi11.07” x 8.2” x 1.7” / 281.1 mm x 208.2 mm x 43 mm
Dimensi Box Pengiriman28.74” x 20.47” x 13.78” / 730 mm x 520 mm x 350 mm
Berat (Sebelum Dikemas)4.6 lbs / 2.1 kg
Berat (Setelah Dikemas)7.3 lbs / 3.3 kg
Suhu saat Beroperasi0°C to 40°C / 32°F to 104°F
Suhu dalam Mode Penyimpanan-30°C to 60°C / -22°F to 140°F
KelembapanOperating: 20% to 80%
Storage: 10% to 90%
Real-Time Clocklithium-ion battery
MTBF50,000 hours demonstrated
Paket Sudah TermasukQIG
2x WiFi/BT Antenna
4x M6x50 screws
4x M8x50 screws
4x Spacers
Persetujuan dan Pernyataan PeraturanUL/cUL, CB, FCC, CE, AS, NZS, VCCI
Garansi3-year
Opsi Layanan yang Diperpanjang4 year warranty coverage – Elo P/N: E896120
5 year warranty coverage – Elo P/N: E896322
3 year warranty coverage + AUR – Elo P/N: E896699
4 year warranty coverage + AUR – Elo P/N: E896903
5 year warranty coverage + AUR – Elo P/N: E897104

Additional information

Category

,

OS

,

Processor

Intel i5

Related products

Windows Computer Modules (ECMG4) - for IDS 03/53-Series
Windows Computer Modules (ECMG4) - for IDS 03/53-Series

Windows Computer Modules (ECMG4) – for IDS 03/53-Series

Elo ECMG4 Computer Modules

The Elo ECMG4 Computer Modules feature Intel® Core® 7th Generation CPUs with enhanced graphics performance. Available with Intel i5 processors for Microsoft Windows® 10 or no operating system, the commercial grade computer modules transform Elo’s Large Format Interactive Displays into powerful all-in-one platforms. By adding touch to digital signage installations, you can create immersive brand experiences and self-service solutions to help increase customer engagement and satisfaction.

Categories,

Features & Benefits

Smaller Form Factor

With dimensions of 11.07×8.2×1.7 the new ECMG4 form factor is 47% smaller than the previous model, delivering a lower cost, lower energy consumption mini pc that’s easier to install and maintain.

Smaller Form Factor

Key Features

  • CPU

Intel Core i5-7500T

  • GPU

Intel HD Graphics 630

  • Chipset

Intel H110 Chipset

  • OS

Windows 10 Enterprise 2019 LTSC 64-bit,
Windows 10 Enterprise 2019 SAC 64-bit or no OS

  • RAM

8 GB DDR4-2400 MHz SO-DIMM on
1 of 2 slots (expand to 64 GB) OS

  • Storage

256GB m.2
Solid State Drive (SSD)

Easy Installation

The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry’s thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.

Connections

Connections

  • LAN
  • 2x USB 2.0
    Type A
  • 2x USB 3.0
    Type A
  • HDMI
  • 3.5 mm line
    out & mic in

Collaboration Ready

Pair the flexibility of Elo’s 03/53-Series Interactive Boards with an intuitive dashboard, seamless bring-your-own-device content sharing and robust annotation and whiteboarding software – delivering employees and corporations countless benefits. From increased efficiency to controlled costs – start connecting teams and information in real time to empower better, faster, more reliable decision making and improving the way collaboration works.

Built-to-Last

The Elo Computer Modules deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 4 or 5-years. We design and build the complete solution, with touch integrated from the start.

Specifications

Part Number(s)5-7500 ECMG4 – No OS – Elo P/N: E227895
i5-7500 ECMG4 – Windows 10 (LTSC) – Elo P/N: E228087
i5-7500 ECMG4 – Windows 10 (SAC) – Elo P/N: E725044Compatible with
3203L TouchPro
4303L TouchPro and IR
5053L TouchPro and IR
5503L TouchPro and IR
5553L TouchPro and IR
6553L TouchPro and IR
Enclosure ColorBlack
ProcessorIntel Core i5-7500T Processor
(6M Cache, up to 3.30 GHz)
6 MB Intel Smart Cache
8 GT/s Direct Media
Interface 3 (DMI3)
ChipsetIntel H110 Chipset
GraphicsIntel HD Graphics 630
BIOSAMI
Memory (RAM)8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots
16 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (E405488 only)*Maximum memory using 2 slots. Expandable to 64 GB maximum on 2 slots. DDR4-2133/2400 @ 1.2V
Storage256GB m.2 Solid State Drive (SSD)

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

WirelessIEEE 802.11 a/b/g/n/ac (downlink MU-MIMO)
BluetoothBluetooth 5
USB Ports2 x USB 2.0 Type A
2 x USB 3.0 Type A
Ethernet Port1 x LAN RJ45
Audio Ports1 x 3.5 mm Line out
1 x 3.5 mm MIC in
Video Out1 x HDMI (UHD capable)
OSNo OS
Windows 10 64-bit (SAC)
Windows 10 Enterprise 2019 LTSC 64-bit
Power SupplyPower provided by IDS display
Dimensions11.07” x 8.2” x 1.7” / 281.1 mm x 208.2 mm x 43 mm
Shipping Box Dimensions28.74” x 20.47” x 13.78” / 730 mm x 520 mm x 350 mm
Weight (Unpackaged)4.6 lbs / 2.1 kg
Weight (Packaged)7.3 lbs / 3.3 kg
Operating Temperature0°C to 40°C / 32°F to 104°F
Storage Temperature-30°C to 60°C / -22°F to 140°F
HumidityOperating: 20% to 80%
Storage: 10% to 90%
Real-Time Clocklithium-ion battery
MTBF50,000 hours demonstrated
What’s in the BoxQIG
2x WiFi/BT Antenna
4x M6x50 screws
4x M8x50 screws
4x Spacers
Regulatory approvals and declarationsUL/cUL, CB, FCC, CE, AS, NZS, VCCI
Warranty3-year
Extended Service Options4 year warranty coverage – Elo P/N: E896120
5 year warranty coverage – Elo P/N: E896322
3 year warranty coverage + AUR – Elo P/N: E896699
4 year warranty coverage + AUR – Elo P/N: E896903
5 year warranty coverage + AUR – Elo P/N: E897104
