Features & Benefits
Add the perfect touchscreen display
15″ I-Series 4 Slate

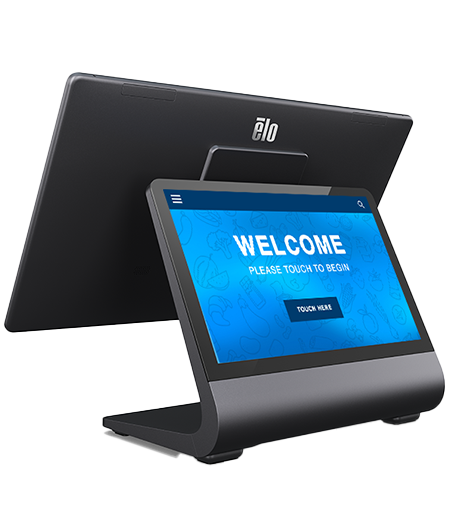

Integrated interactive CFD
Integrated I/O
From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
Conceal Your Cables
Keep your counter clean with the integrated cable routing system.
Single Cable Connection
Connect a secondary display with a single USB‑C cable that provides touch, video and power.
Create your perfect POS system
From integrated I/O and a customer-facing display to concealed cable routing, Elo’s modular point of sale solutions can be tailored to fit any business.
Specifications

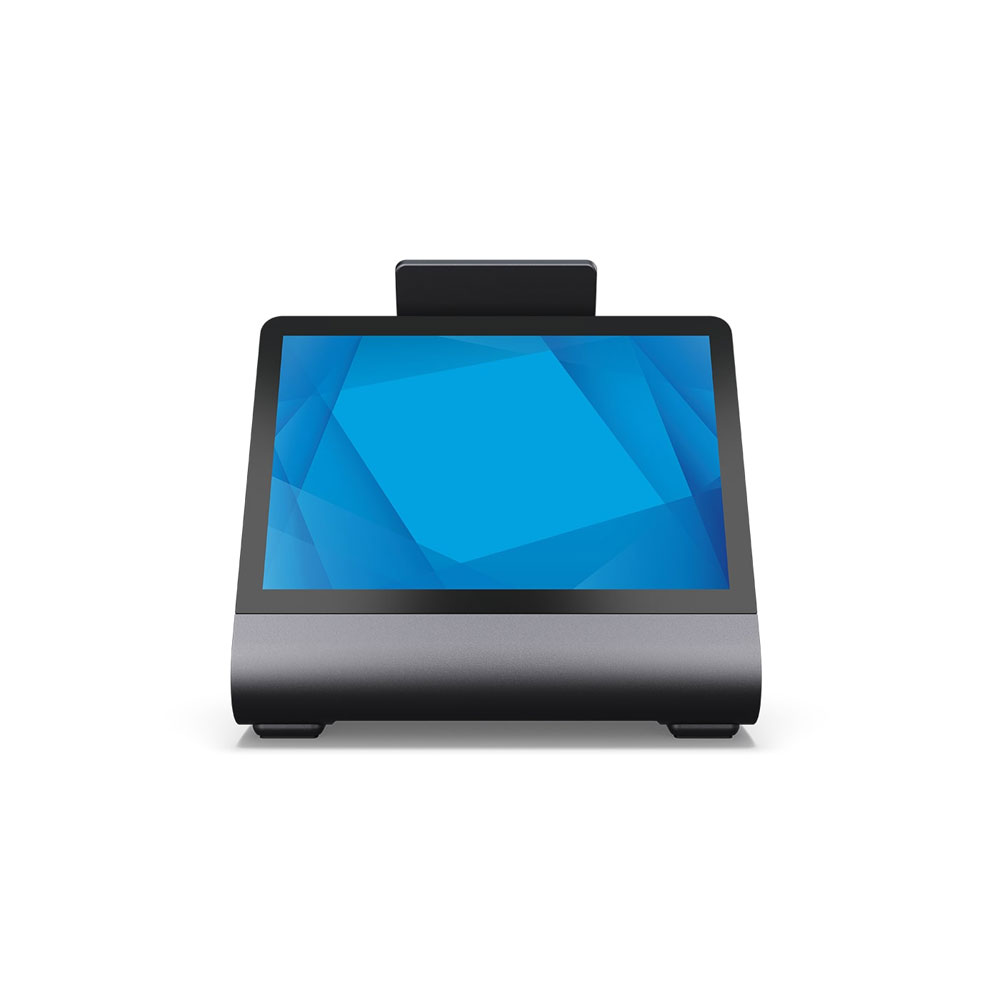

| Part Number(s) | E483135 – Z30 POS Stand without CFD E482940 – Z30 POS Stand with CFD |
| Enclosure Color | Dark Gray Metallic |
| Compatibility | Main Display: 15″ I-Series 4 SlateCustomer-facing Display (for use with E483135): 0702L – Elo P/N: E796382 1002L – Elo P/N: E155834 and E324341 1302L – Elo P/N: E683595 and E683787 1502L – Elo P/N: E125496 |
| Display Head Connection | USB-C |
| I/O Ports | DC Input 4 x USB-A 3.0 (900mA) RJ45 Ethernet LAN (Gigabit) RJ12 (Serial/cash drawer)* 12/24V Powered USB 24V USB-C output – CFD (DisplayPort, Touch & Power Delivery up to 27W)*User will need to select mode |
| Power | AC input voltage: 100-240 VAC Input frequency: 50-60 Hz |
| Power Consumption (Typical) | On: No CFD Model: 3.5W With CFD Model: 8.32WOff: <0.1WSleep: No CFD Model: 2.5W With CFD Model: 8.32W |
| Real-Time Clock | lithium coin cell battery |
| Mounting Options | VESA 75 mm |
| Integrated Customer-Facing Display | Size -10.1 inch Resolution – 1280×800 @ 60 Hz Active Display Area (H x V) – 8.7” x 5.3” / 216.96 mm x 135.6 mm Viewing Angle – Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total Brightness – LCD Panel: 400 nits, TouchPro PCAP 344 nits Number of Colors – 8-bit (16.7M) Touch Technology – TouchPro PCAP Sealing – Touchscreen sealed to LCD Number of Touches – 10 |
| Weight (Unpackaged) | 5.7 lbs / 2.6 kg |
| Weight (Packaged) | 10.8 lbs / 4.9 kg |
| Dimensions | 6.34″ x 9.55″ x 7.99″ / 162 mm x 242.6 mm x 203 mm |
| Shipping Box Dimensions | 11.65″ x 11.42″ x 12.6″ / 296 mm x 290 mm x 320 mm |
| Operating Temperature | 0° C to 40° C / 32° F to 104° F |
| Storage Temperature | -20° C to 50° C / -4° F to 122° F |
| Humidity | Operating: 20% – 80% / Storage: 5% – 95% |
| MTBF | 50,000 hours demonstrated |
| Warranty | 2-year |
| Extended Service Options | 3 year warranty coverage – Elo P/N: E375367 4 year warranty coverage – Elo P/N: E375573 5 year warranty coverage – Elo P/N: E375771 2 year warranty coverage + AUR – Elo P/N: E375970 3 year warranty coverage + AUR – Elo P/N: E376169 4 year warranty coverage + AUR – Elo P/N: E376362 5 year warranty coverage + AUR – Elo P/N: E376547 |
| Regulatory approvals and declarations | FCC (US) Class B (With CFD Model is Class A only) IC (Canada) CE (Europe) VCCI (Japan) RCM (Australia) |
| What’s in the Box | Z30 POS Stand North American Power Cable European Power Cable Quick Install Guide 150W Power Brick 2 x Zip Ties 4 x M4x6 mm screws in a plastic bag 1 x M4x8 mm screw in a plastic bag 1 x M3x6 mm screw in a plastic bag Base Plate – for mounting to a countertop |
