Features & Benefits
Brilliant Displays from 19 to 27-inches
The brilliant touchscreens with Elo’s industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
- Retail
- Hospitality
- Government
- Restaurant
- Rental & Staging
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Fingerprint Scanner
The Biometric Fingerprint Scanner can be attached to provide secure and quick login.
MSR
Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.
Barcode Scanner
Enhance self-service checkout and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.
NFC
The Near Field Communication (NFC) adapter can be integrated for easy mobile payments with just a touch of the phone.
One for You.
One for Your Customers.
Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Connections
- HDMI
- VGA
- Integrated Speakers (HDMI or Line-In)
- USB 2.0
The Elo Advantage
Customization
Elo offers customized solutions with everything from slight modifications to ground up designs. If you need something customized.
Global Reach
Elo products are distributed and available across the globe. Every 21 seconds, an Elo touchscreen is installed somewhere in the world.
Long Life Cycle
We do everything in our power to minimize design changes and we’ve kept some monitors available to order for over seven years
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.
Specifications
| Part Number(s) | With Stand – E351997 Without Stand – E126483 |
| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) – 10 Touch |
| Diagonal Size | 27” diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area | 23.54″ x 13.24″ / 597.88 x 336.31 mm |
| Resolution | 1920 x 1080 @ 50, 60Hz |
| Other Supported Resolutions | 640 x 480 60Hz 640 x 400 70Hz 720 x 400 70Hz 800 x 500 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 @ 58Hz, 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD Panel: 300 nits TouchPro PCAP: 270 nits |
| Response Time-total (typical) | 14 msec |
| Contrast Ratio | 1000:1 |
| Touch Interface | USB |
| Surface Treatment | Clear |
| On Screen Display | Accessible through switches along the bottom: Controls: Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean Lockouts: OSD, Power |
| I/O Ports | VGA HDMI Combo Jack DC jack USB Type B USB 2.0 Type A 4x Micro USB |
| Speakers | Two x 2W internal speakers |
| Input Video Format | VGA (VGA DE-15 (DB-15) Male connecter cable included) HDMI (HDMI cable included) |
| Input Video Frequency | Horizontal: 30 – 82KHz Vertical: 50 – 75Hz |
| Power Consumption (Typical) | Monitor + AC/DC adapter ON: 28W SLEEP: 0.45W OFF: 0.38W |
| Input Voltage | 12VDC +/- 5% 100-240VAC, 50/60Hz |
| Input Connector | Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter) |
| Peripheral Mounting | 4x Micro USB side ports (Top, Bottom, Left, Right) |

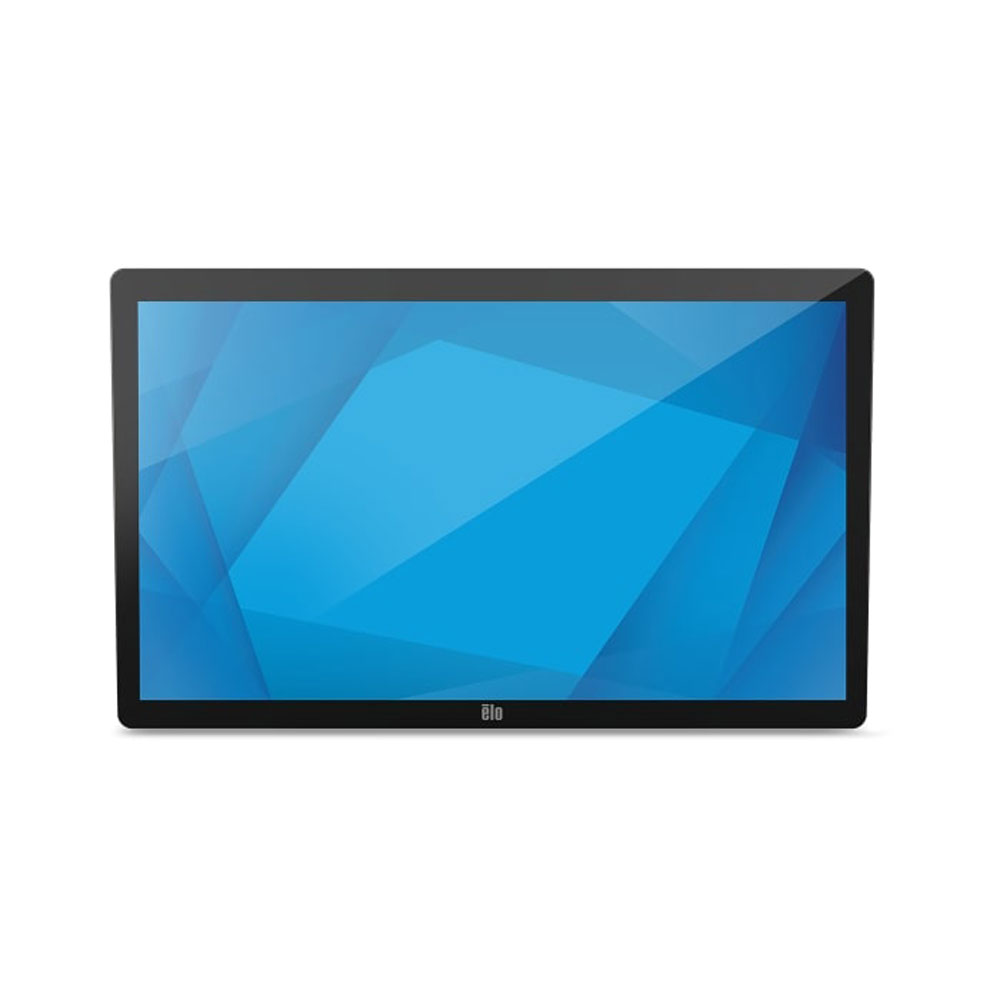

| Monitor Dimensions (without Stand) | 15.52″ x 25.50″ x 1.77″ / 394.1 mm x 647.6 mm x 44.9 mm |

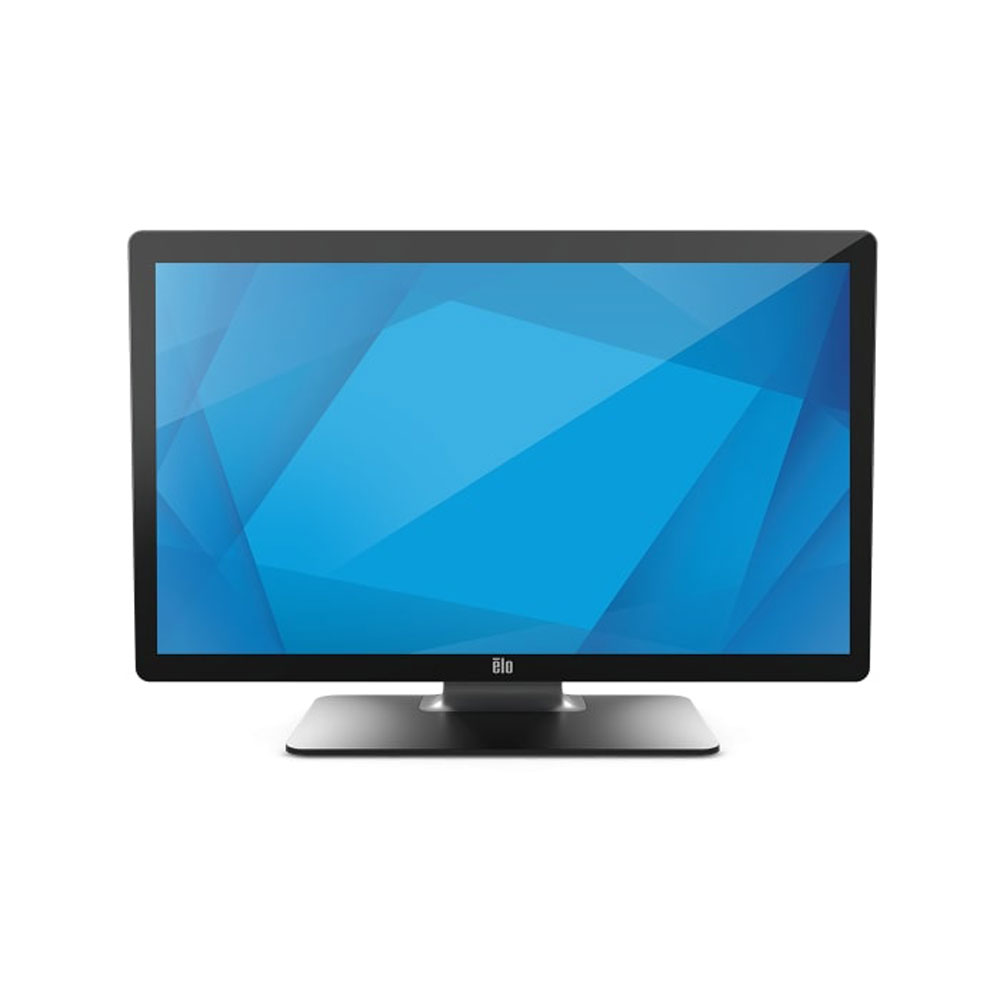

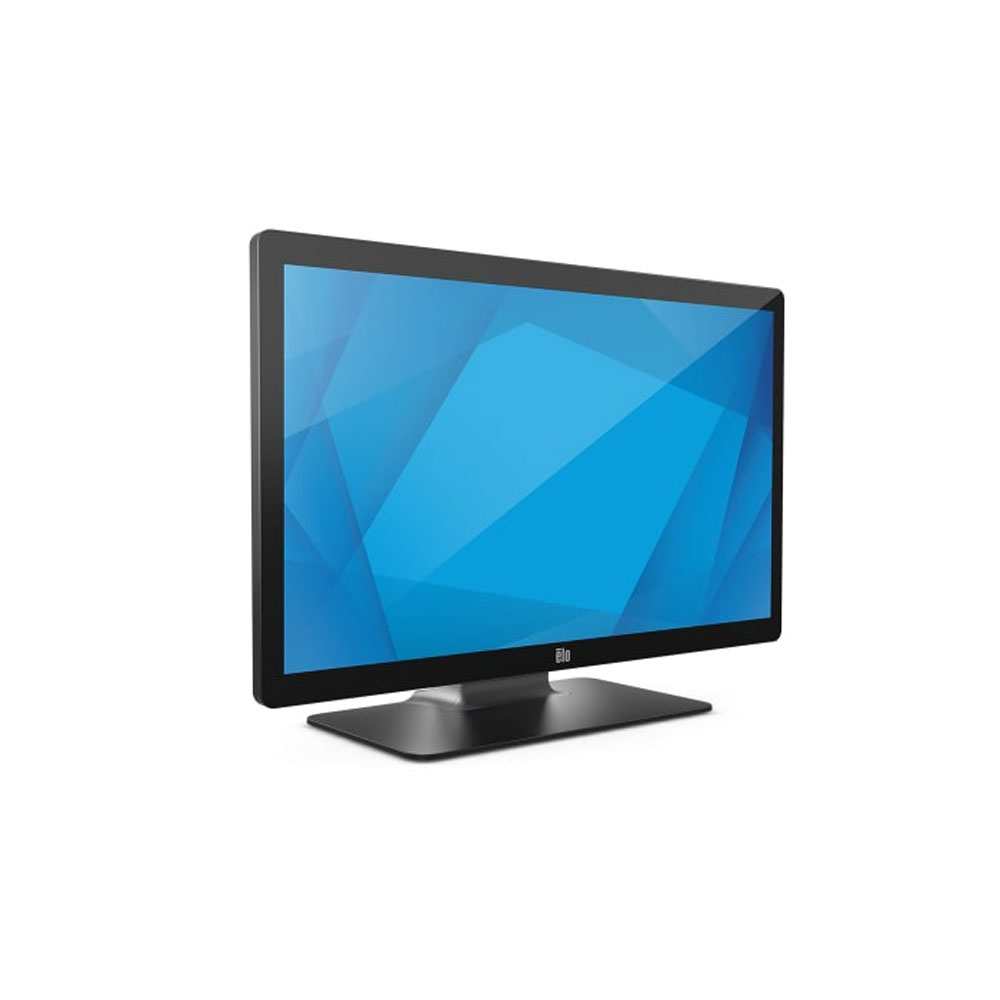

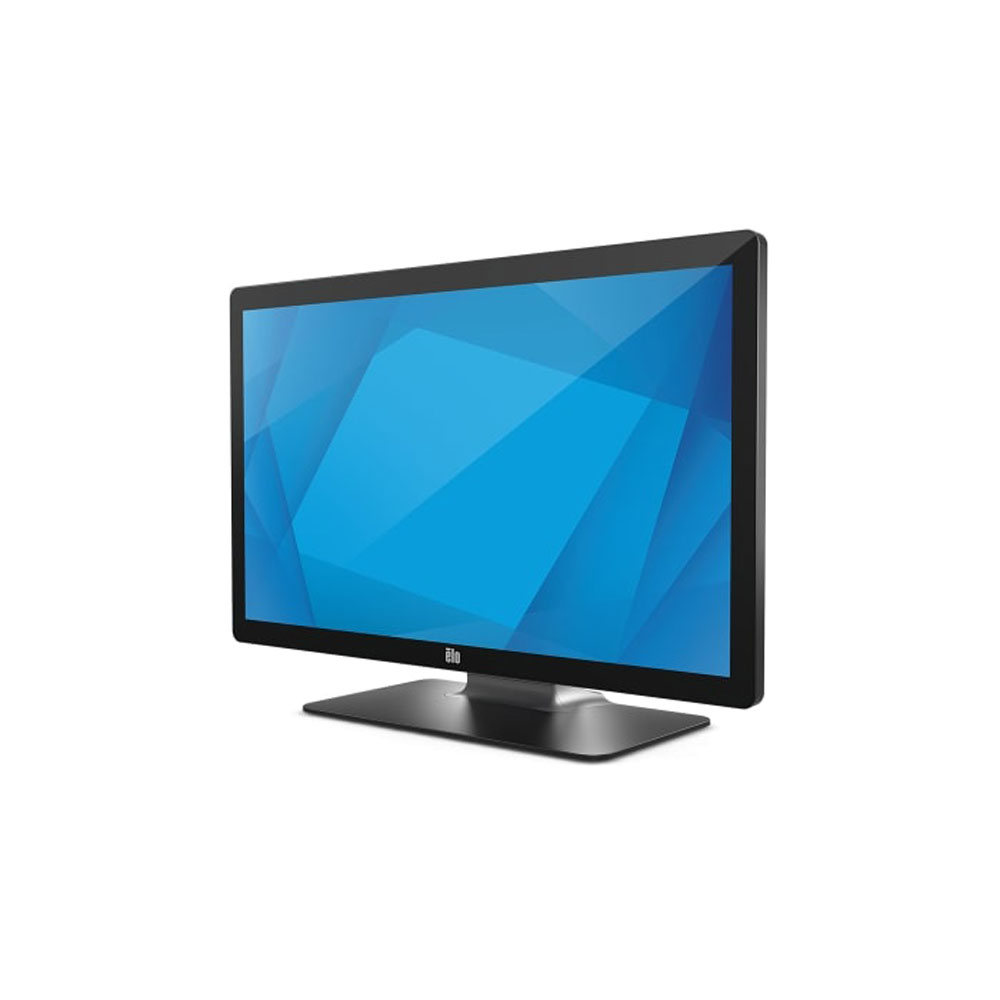

| Monitor Dimensions (with Stand) | 17.75″ x 25.50″ x 9.17″ / 450.9 mm x 647.6 mm x 233 mm |
| Shipping Box Dimensions | With Stand: 22.05″ x 30.08″ x 12.68″ / 560 mm x 764 mm x 322 mm Without Stand: 20.47″ x 30.31″ x 7.36″ / 520 mm x 770 mm x 187 mm |
| Weight (Unpackaged) | With Stand: 23.15 lbs / 10.5 kg Without Stand: 15.96 lbs / 7.24 kg |
| Weight (Packaged) | With Stand: 33.3 lbs / 15.1 kg Without Stand: 21.12 lbs. / 9.58 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 95% |
| Sealability | Touchscreen sealed to bezel; Touchscreen sealed to LCD |
| MTBF | 50,000 hours demonstrated |

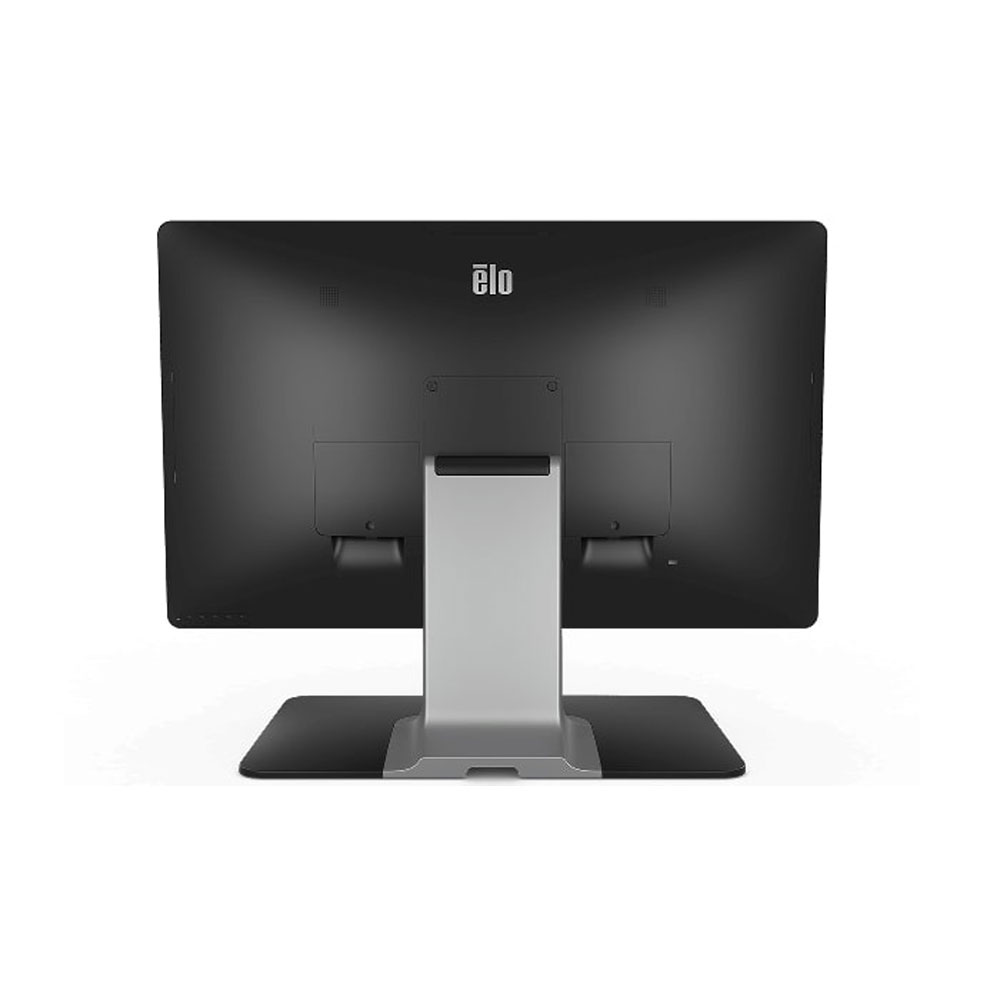

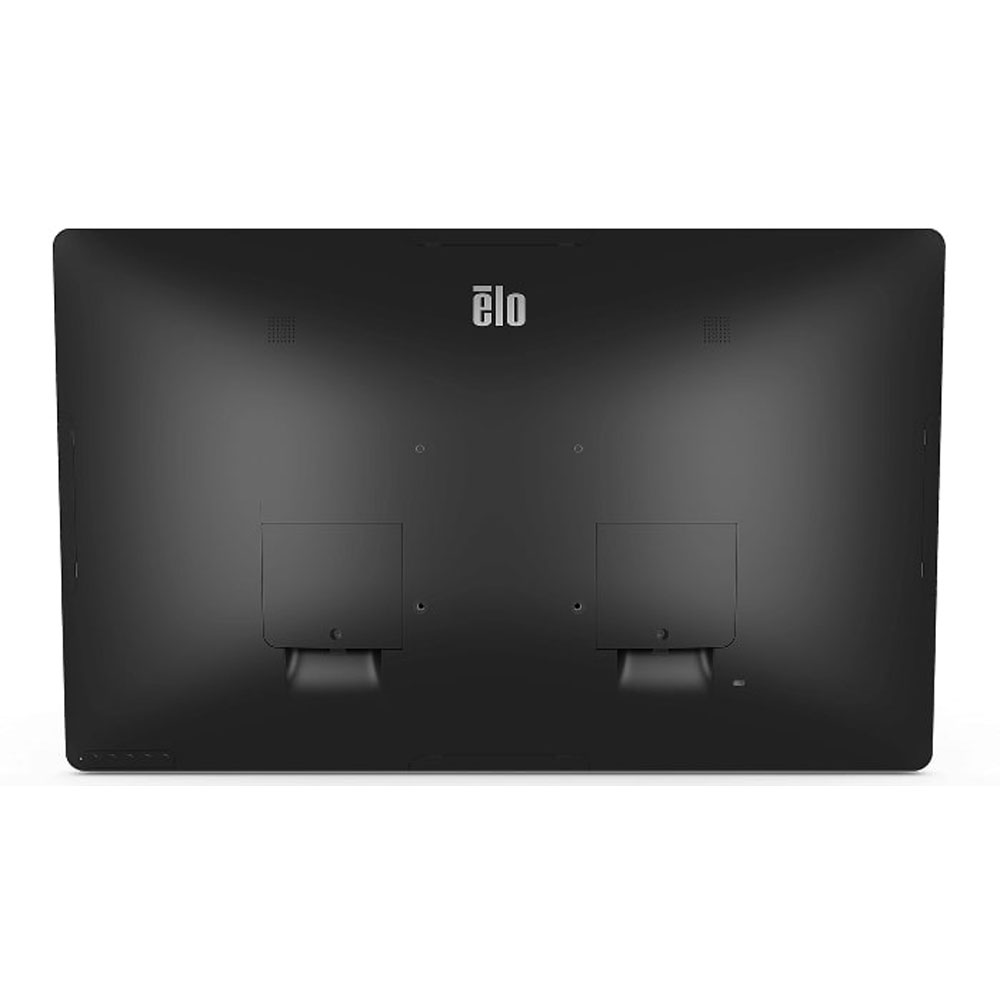

| Mounting Options | VESA 4-hole 100mm mounting interface on rear of unit |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage – Elo P/N: E898247 5 year warranty coverage – Elo P/N: E898449 3 year warranty coverage + AUR – Elo P/N: E898648 4 year warranty coverage + AUR – Elo P/N: E894921 5 year warranty coverage + AUR – Elo P/N: E895125 |
| Regulatory approvals and declarations | Canada CUL, IC China CCC Europe CE United Kingdom UKCA Korea KCC Taiwan BSMI United States FCC, UL Japan VCCI International CB Australia RCM Russia EAC Mexico CoC RoHS, China RoHS, WEEE, REACH |
| Ingress Protection | IPX1 – Front only |
| Impact Protection | IK06 |
| Power Cables | North America Power Cable C13 – Elo P/N: E593865 Australia Power Cable C13 – Elo P/N: E594067 Europe Power Cable C13 – Elo P/N: E594264 Korea Power Cable C13 – Elo P/N: E594466 China Power Cable C13 – Elo P/N: E594670 Taiwan Power Cable C13 – Elo P/N: E594869 Japan Power Cable C13 – Elo P/N: E793799 |
| What’s in the Box | Touchmonitor Quick Install Guide 3x Tie wraps VGA cable HDMI cable Touch USB cable Audio cable Power brick NA Power cable EU Power cable EEI Label 4 screws (for E126483) |
| Replacement DC Power Supply | Power Brick 50W – E593661 |
| Optional Peripherals | Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 2D Barcode Scanner (Black – SE4720) – Elo P/N: E384627 2D Barcode Scanner (Black – SE4107) – Elo P/N: E245047 EMV Cradle for MagTek eDynamo – Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930 Status Light (Micro-USB Connectivity) – Elo P/N: E644767 Temperature Sensor Pro – Elo P/N: E534879 3D Camera – Elo P/N: E134699 Webcam – Elo P/N: E201494 RFID – Elo P/N: E673037 |
| Stands, Mounts & Kits | Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088 Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382 Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151 1.8m Cable Kit – Elo P/N: E408193 Elo Stand 2402/3-2702/3 – Black (100 mm VESA) – Elo P/N: E509844 Slim Self-Service Countertop Stand (75mm or 100mm VESA) – Elo P/N: E514693 Slim Self-Service Floor Stand (75mm or 100mm VESA) – Elo P/N: E514881 + E515260 Elo Backpack® 4 (Value Model) – Elo P/N: E393754 Elo Backpack® 4 (Standard Model) – Elo P/N: E393359 Wallaby™ Pro countertop stand – Elo P/N: E989127 Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512 Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E989314 + E990151 Wallaby™ Pro wall-mounted stand – Elo P/N: E989127 + E990079 |
