Features & Benefits
Integrated touch.

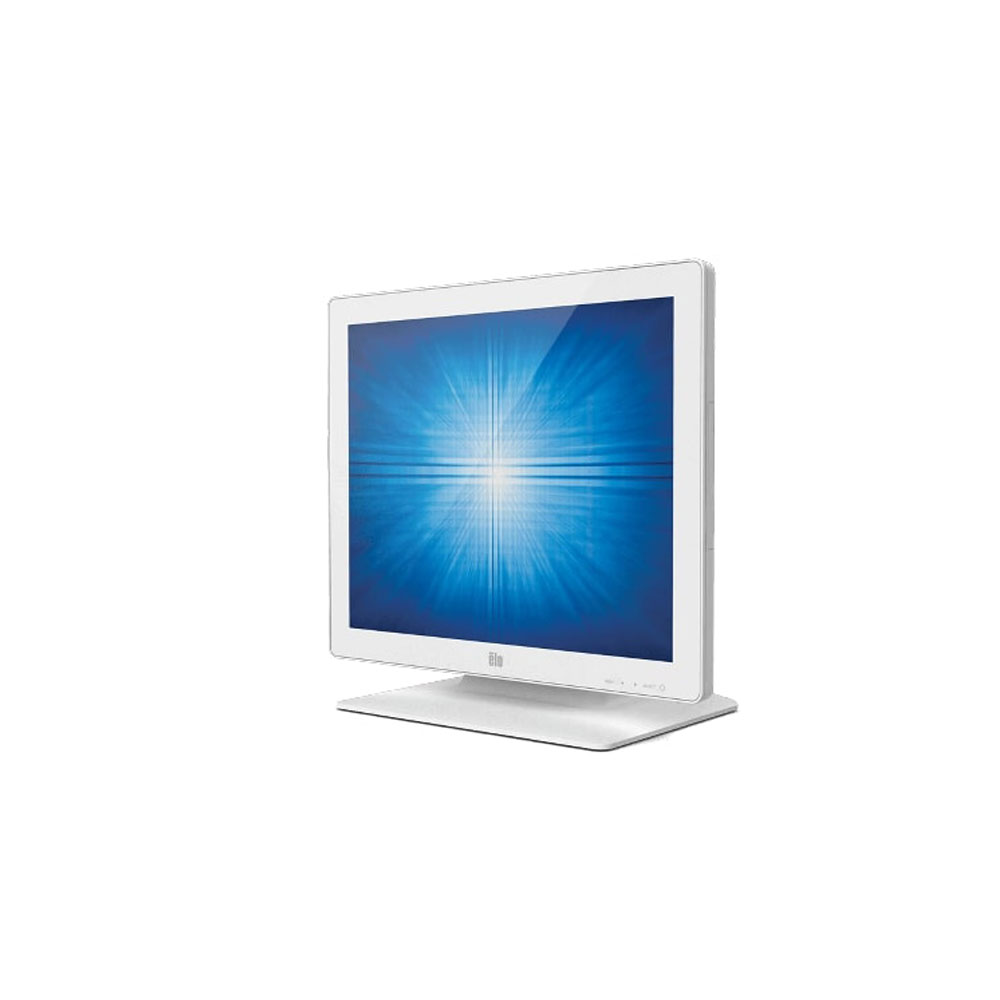

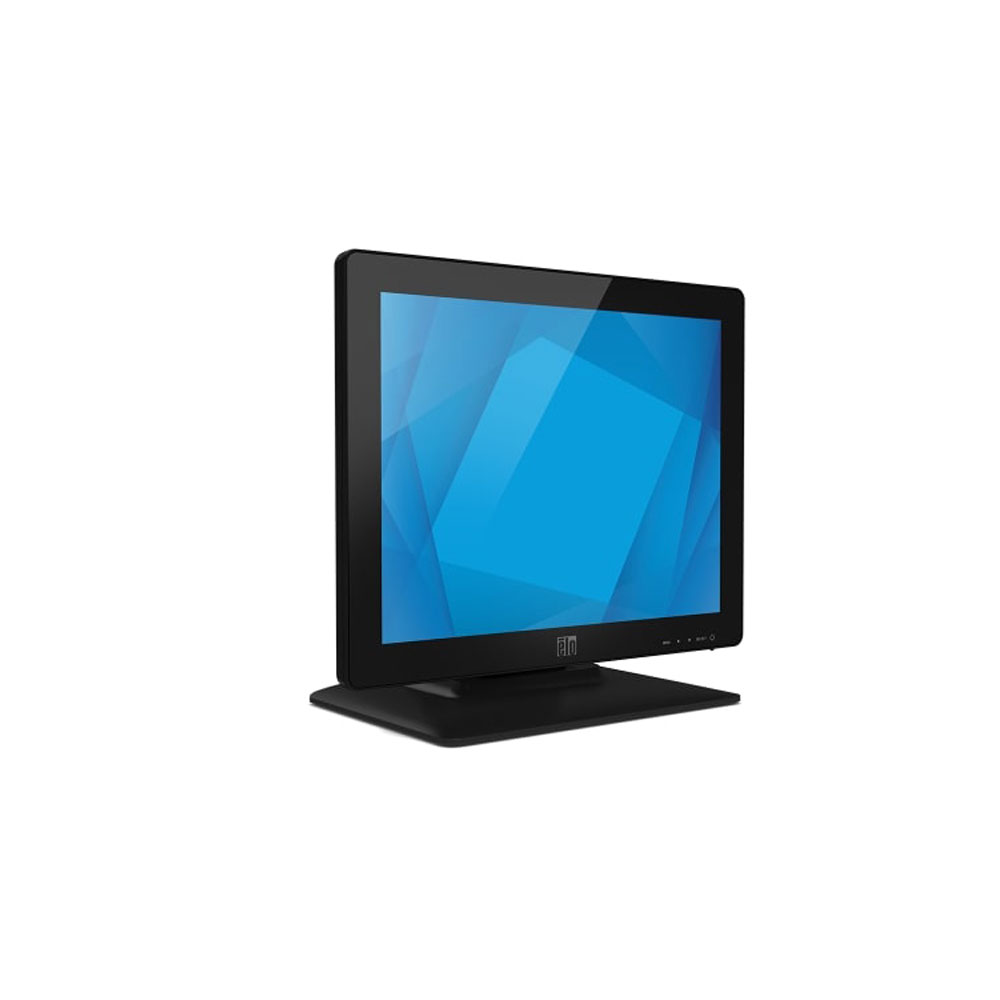

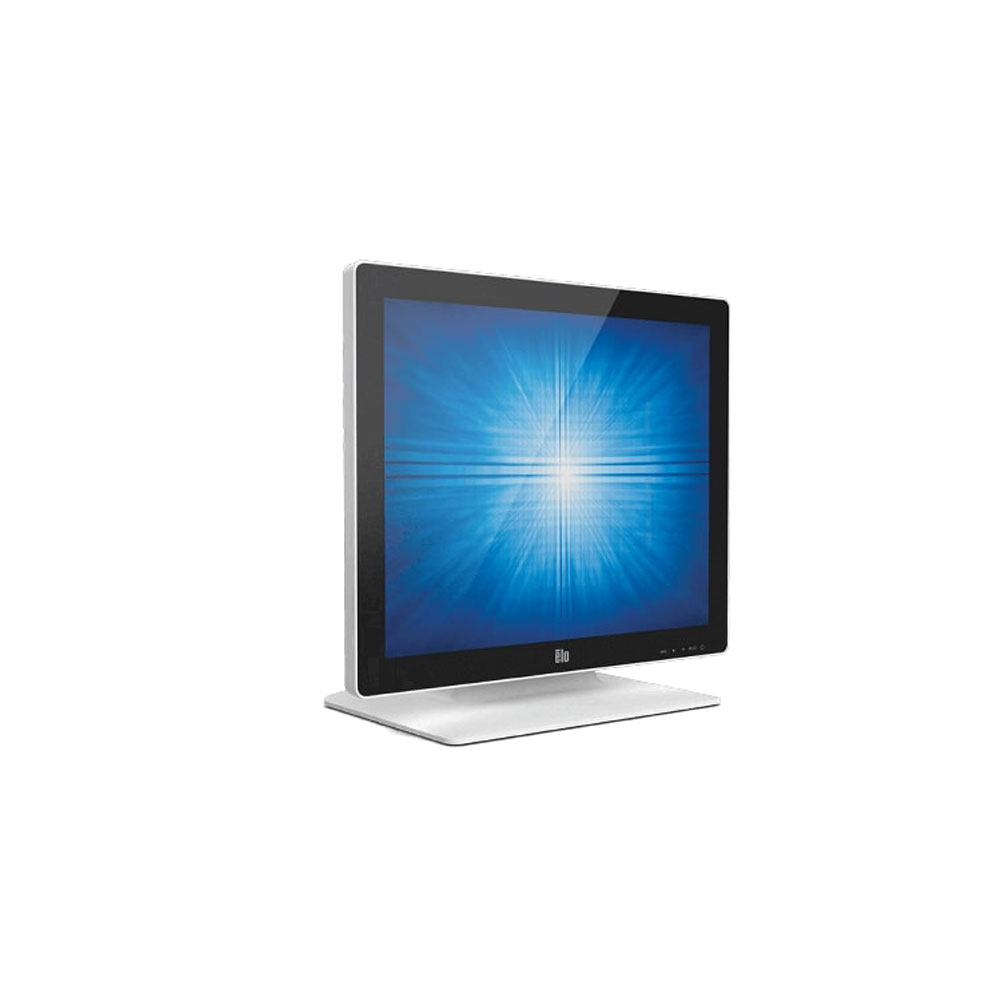

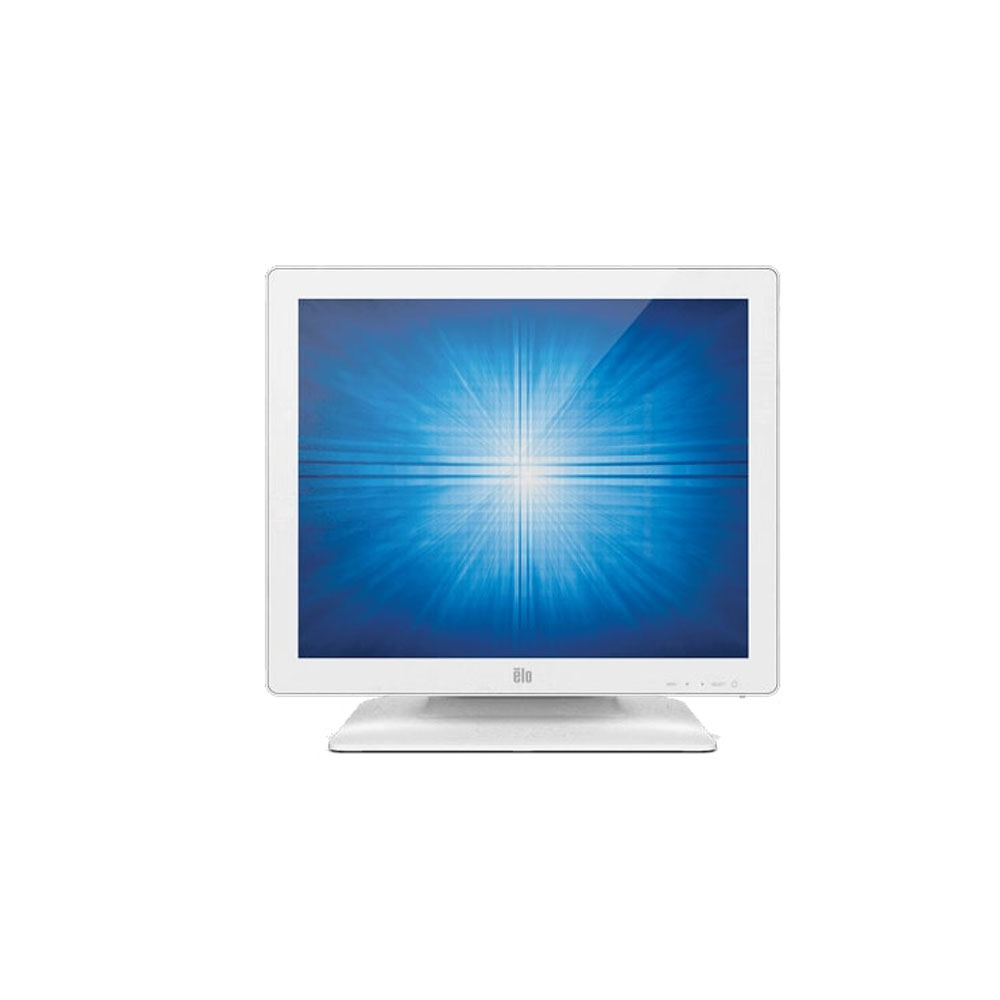

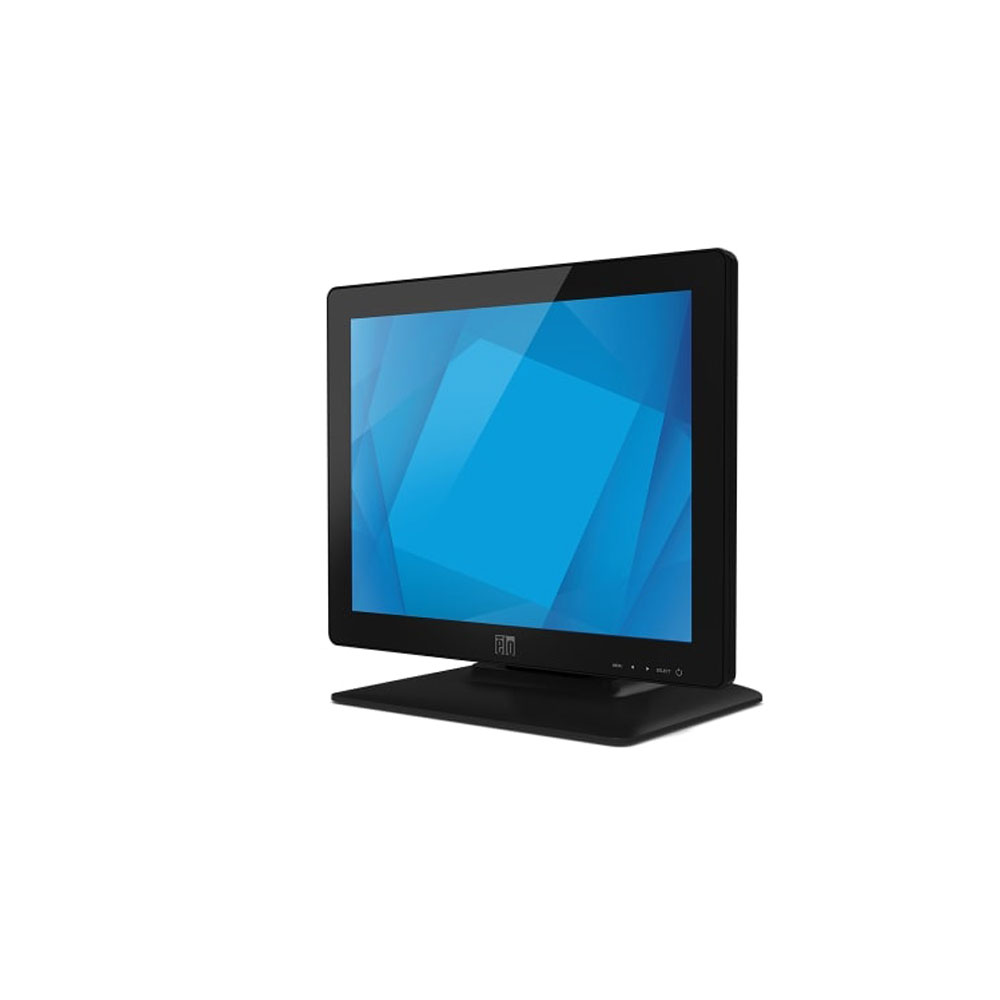

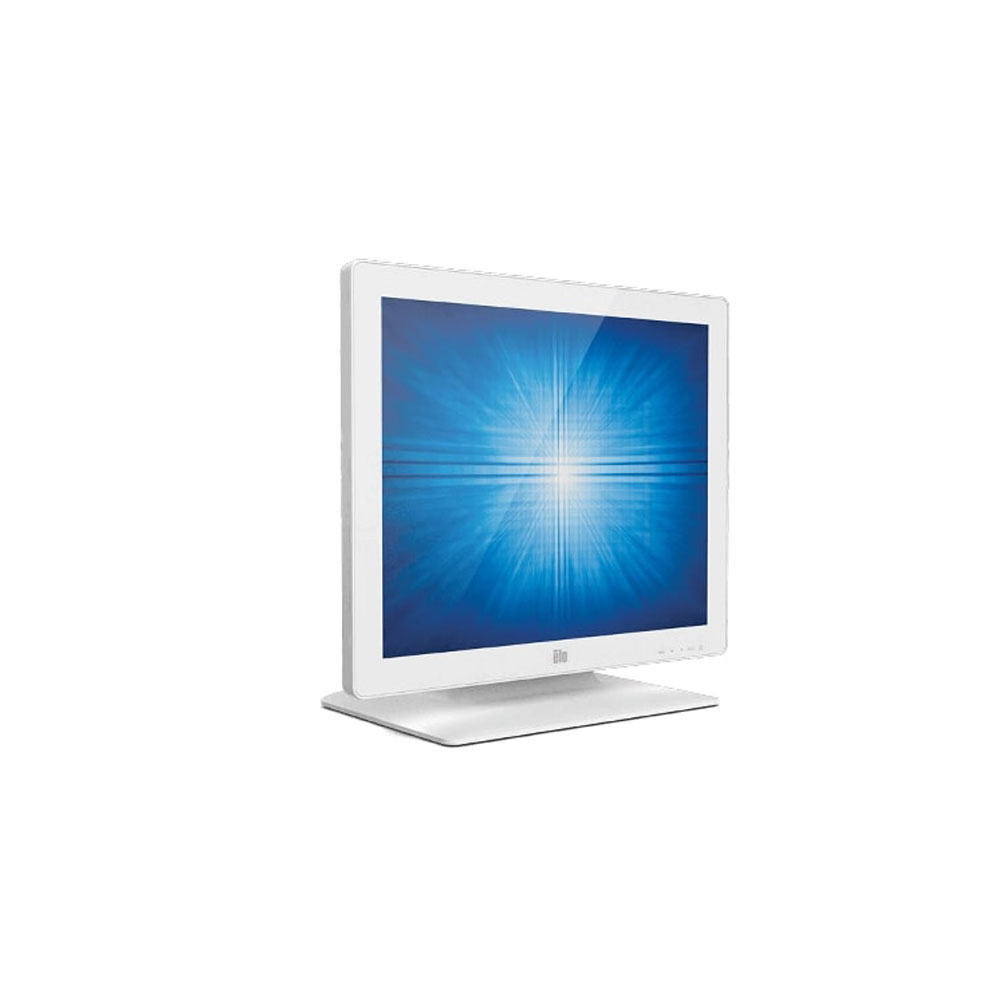

The 15-inch monitor offers a choice of two industry leading Elo touchscreen technologies. Both enable multi touch functionality, with a seamless zero-bezel display. IntelliTouch® surface acoustic wave (SAW) zero-bezel delivers the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro® PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.
Installation flexibility.

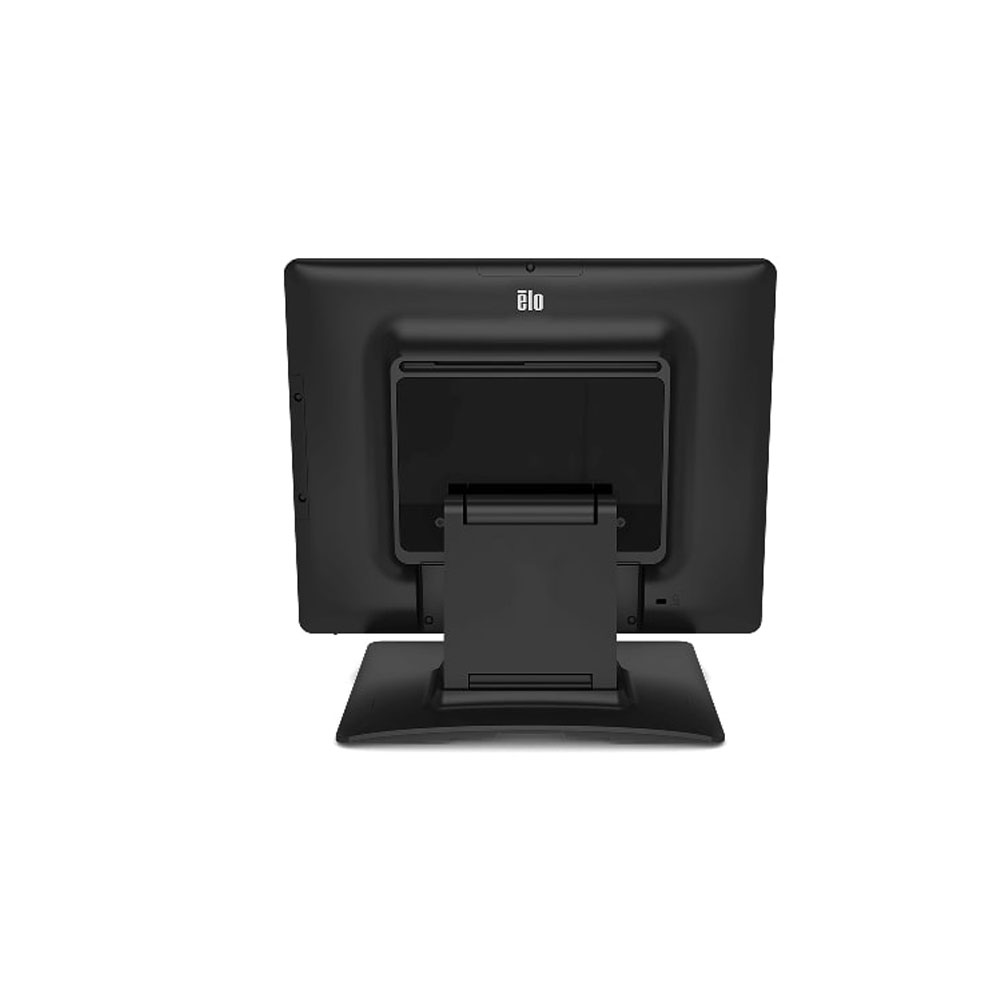

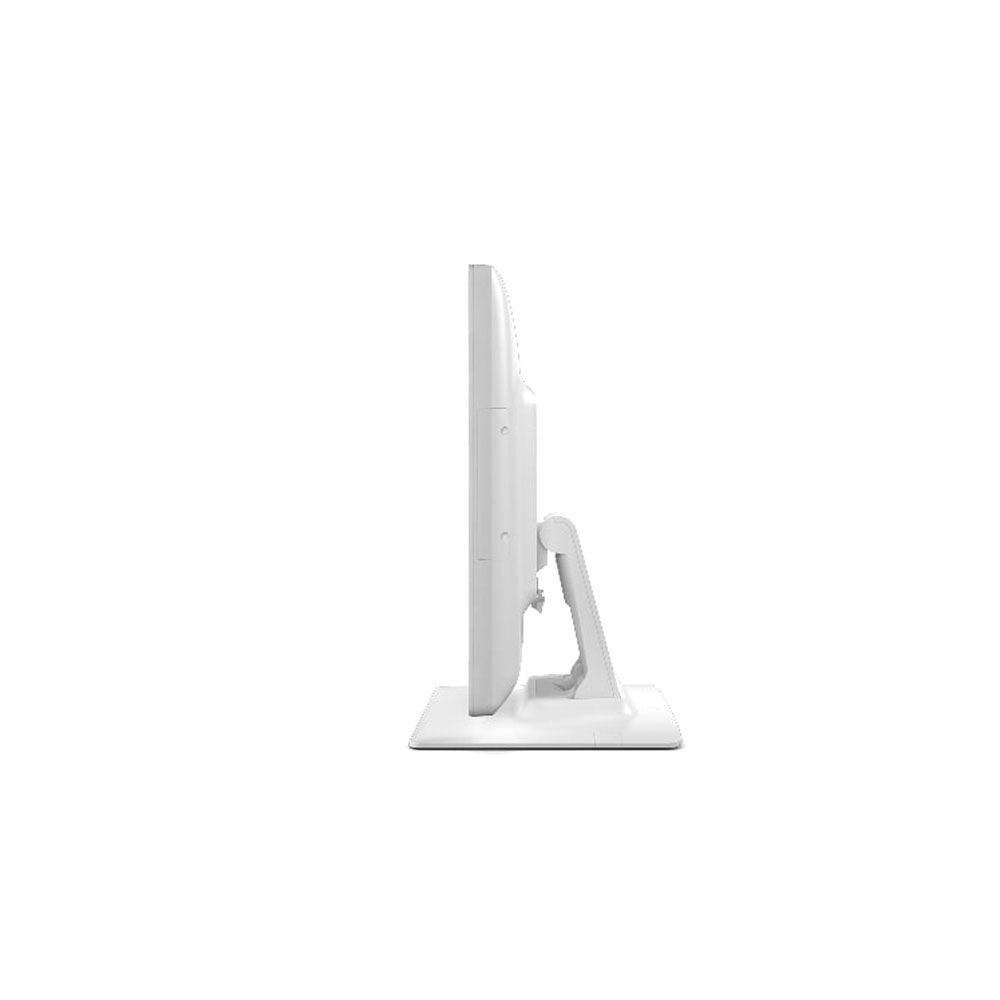

The multiple mount and stand options for the 1523L ensures installation flexibility and accommodates tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns. The dual position stand offers a single hinge design with high/low settings and tilt functionality.
Commercial grade.
The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- Integrated cable management

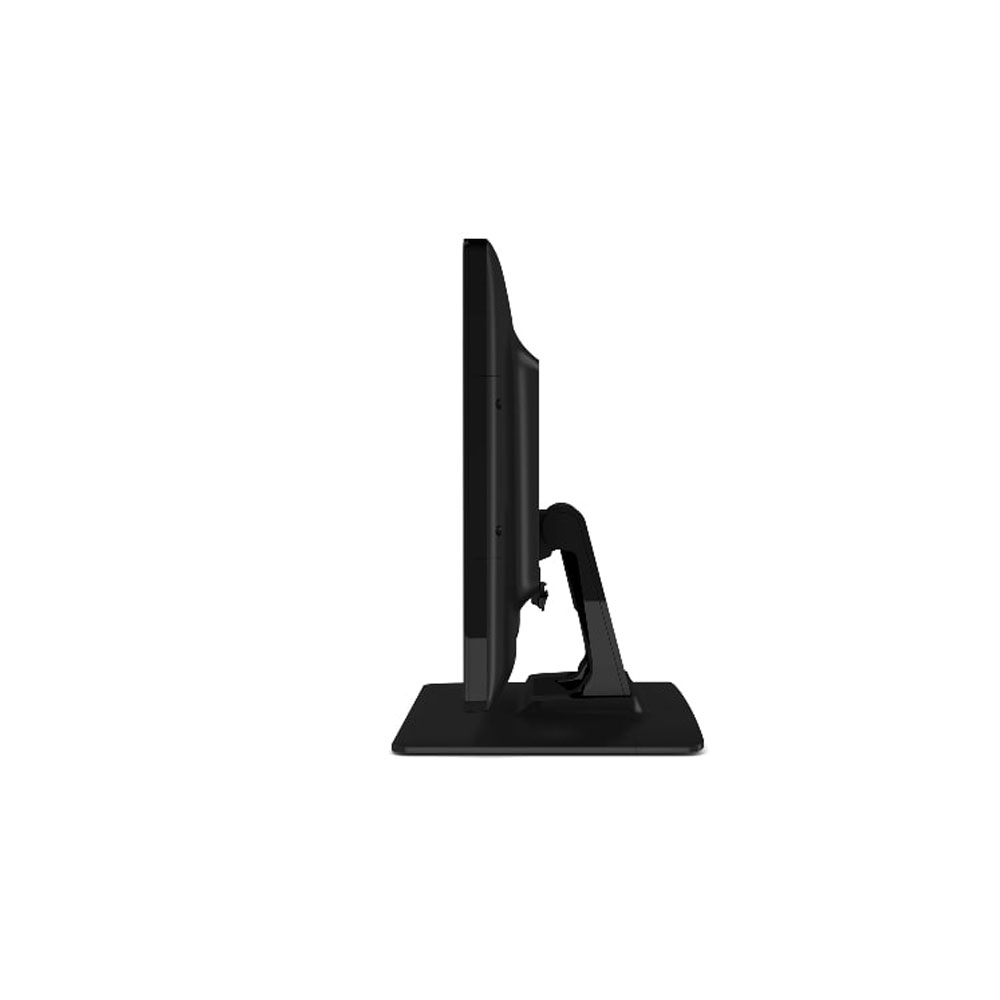

- Dual position stand – single hinge with high/low settings and tilt functionality
- Desktop, wall or VESA mounting
- Three-year standard warranty
- Long-lasting product cycle
- Screen is resistant to dirt, dust, liquid
- Internal speakers
Specifications
| Part Number(s) | PCAP White (Worldwide) – E336518 PCAP Black (Worldwide) – E738607 IntelliTouch ZB Dual Touch White (Asia-Pacific & Japan) – E243774 IntelliTouch ZB Dual Touch Black (Worldwide) – E394454 |
| Enclosure Color | White or Black |
| Touch Technology & Capacity | SAW ZB (IntelliTouch® Surface Acoustic Wave) – Dual Touch PCAP (Projected Capacitive) – 10 Touch |
| Diagonal Size | 15” diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 4:3 |
| Active Area | IntelliTouch ZB: 11.97″ x 8.98″ / 304.13mm x 228.1mm PCAP: 12.01″ x 9.01″ / 305.1mm x 229.1mm |
| Resolution | 1024 x 768 @ 60Hz |
| Other Supported Resolutions | 1024 x 768 at 60, 65, 70 or 75 Hz 800 x 600 at 56, 60,75 Hz 720 x 400 at 70 Hz 640 x 480 at 60,75 Hz |
| Viewing Angle | Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total |
| Number of Colors | 16.2 million |
| Brightness (typical) | LCD panel: 300 nits IntelliTouch ZB: 270 nits PCAP: 270 nits |
| Response Time-total (typical) | 23 msec |
| Contrast Ratio | 800:1 |
| Touch Interface | USB |
| On Screen Display | Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power |
| USB Ports | 2 peripheral ports (USB Interface) |
| Speakers | internal speakers |
| Input Video Signal Connector | Analog VGA on Female DB-15 connector Digital DVI on Female DVI-D, Dual-Link connector |
| Power Consumption (Typical) | Monitor + AC/DC adapter ON: 10.5W SLEEP: 3.0W OFF: 0.2W |
| Power Supply | External DC (power brick) |
| Input Voltage | 12VDC +/- 5% |
| Input Connector | Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter) |
| Input Frequency | Horizontal: 31.5 – 80 kHz / Vertical: 56 – 75 Hz |
Monitor Dimensions (with Stand) | 14.1″ x 7.84″ x 12.53″ / 358.1mm x 199.1mm x 318.5mm |
| Shipping Box Dimensions | 17.60″ x 8.15″ x 14.96″ / 447mm x 207mm x 380mm |
| Weight (Unpackaged) | 9.26 lbs / 4.2 kg |
| Weight (Packaged) | 15.43 lb / 7.0 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 95% |
| Sealability | Touchscreen sealed to bezel; Touchscreen sealed to LCD |
| MTBF | 50,000 hours demonstrated |
| Stand Options | Tilt, remove |
| Mounting Options | 75mm VESA mount |
| Other Features | 2 stage DPMS VESA DDC Plug and Play Security lock receptacle Internal speakers |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage – Elo P/N: E898247 5 year warranty coverage – Elo P/N: E898449 3 year warranty coverage + AUR – Elo P/N: E898648 4 year warranty coverage + AUR – Elo P/N: E894921 5 year warranty coverage + AUR – Elo P/N: E895125 |
| Regulatory approvals and declarations | UL, cUL, FCC, IC, CCC, CE, UKCA, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RCM, RoHS, China RoHS, WEEE |
| What’s in the Box | QIG, Japan Class-B TM info sheet, User Manual CD, 50W Power Brick, power cable, IEC 60320-C13 to NA/EU plug, DVI-D cable, VGA cable (DB-15 male to DB-15 male), USB cable (Type A plug to Type B plug), Audio cable, Stand base assembly, Filler Plate |
| Replacement DC Power Supply | The monitor may be powered with DC voltage. A optional 12V DC power brick is available at additional cost. United States: E005277 |
| AC Power Cable | Power cables are included. Replacement Cable Kit: E378229 North America: E378229 China: E030476 Taiwan: E637694 Japan: E849156 (3-pin to 2-pin adapter: E351985) |
| Optional PCAP Stylus Pen | E066148 |
| Touch/Video/Audio/Accessory Cables: | All appropriate cables are included and are detachable. |
| Optional Peripherals | Magnetic Stripe Reader (Black MSR) – Elo P/N: E628912 PCAP Stylus Pen – Elo P/N: E066148 |
| Stands, Mounts & Kits | 1523L VESA Mount Plate (White) – Elo p/n: E000449 1523L VESA Mount Plate (Black) – Elo p/n: E000448 |
