Features & Benefits
Integrated touch.
The 17-inch monitor offers a choice of two industry leading Elo touchscreen technologies. Both enable multi touch functionality, with a seamless zero-bezel display. IntelliTouch® surface acoustic wave (SAW) zero-bezel delivers the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro® PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.
Endless function.
The 1723L has been designed for touch from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.
Commercial grade.
The 17-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- Integrated cable management

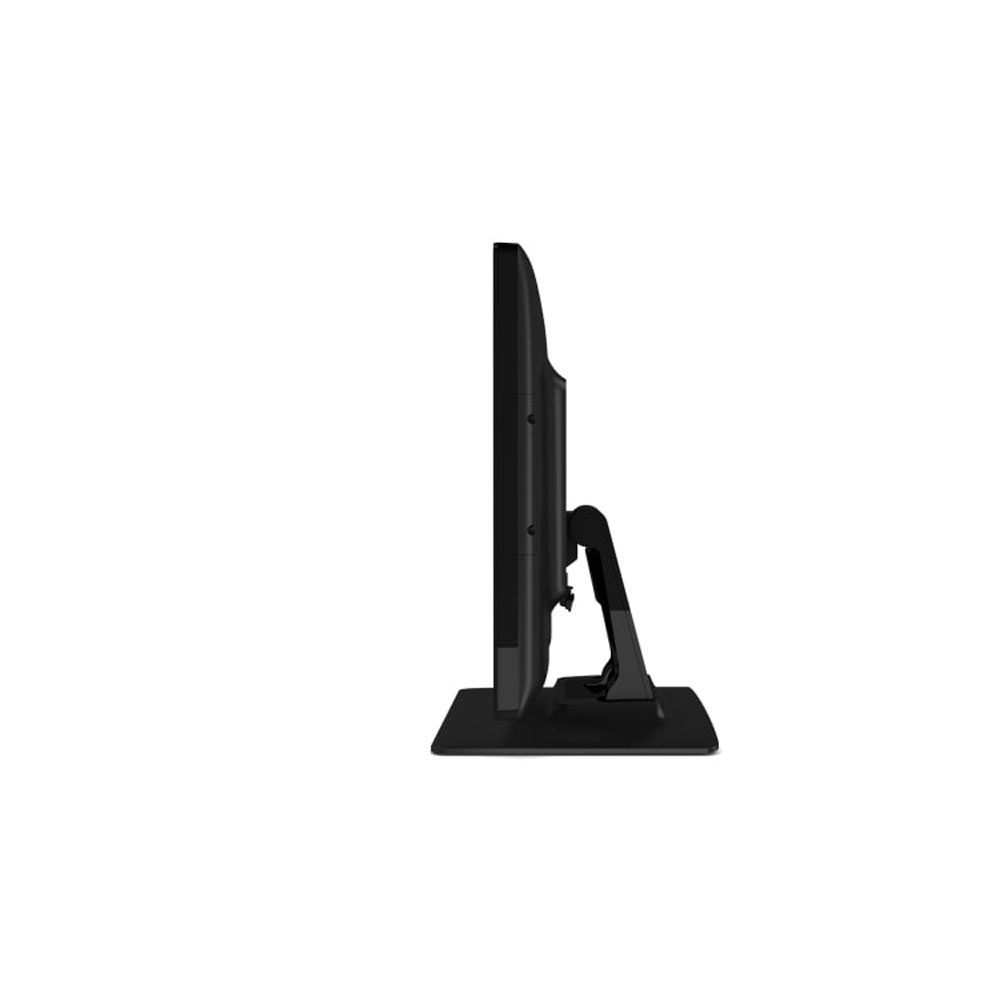

- Dual position stand – single hinge with high/low settings and tilt functionality
- Desktop, wall or VESA mounting
- Three-year standard warranty
- Long-lasting product cycle
- Screen is resistant to dirt, dust, liquid
- Internal speakers
Specifications
| Part Number(s) | PCAP White (Worldwide) – E016808 PCAP Black (Worldwide) – E683457 IntelliTouch ZB Dual Touch Black (Worldwide) – E785229 |
| Enclosure Color | White or Black |
| Touch Technology & Capacity | SAW ZB (IntelliTouch® Surface Acoustic Wave) – Dual Touch PCAP (Projected Capacitive) – 10 Touch |
| Diagonal Size | 17” diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 5:4 |
| Active Area | 13.3″ x 10.64″ / 337.92mm x 270.34mm |
| Resolution | 1280 x 1024 at 75 Hz |
| Other Supported Resolutions | 1280 x 1024 at 60,75 Hz 1024 x 768 at 60,75 Hz 800 x 600 at 60,75 Hz 720 x 400 at 70 Hz 640 x 480 at 60,75 Hz |
| Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD panel: 250 nits IntelliTouch ZB: 225 nits PCAP: 215 nits |
| Response Time-total (typical) | 5 msec |
| Contrast Ratio | 1000:1 |
| Touch Interface | USB |
| On Screen Display | Controls (side): Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power |
| USB Ports | Two external USB ports |
| Speakers | Two 2W internal speakers |
| Video | Analog VGA on Female DB-15 connector Digital DVI on Female DVI-D, Dual-Link connectorInput Video Horizontal Sync frequency range: 31.5 – 80KHz Input Video Vertical Sync (frame rate) frequency range: 56-75Hz |
| Power | Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter, 8.8 mm barrel length) Monitor input power signal specifications: 12.0VDC +/- 5%Note: This monitor is sold with an AC-DC power adapter. Adapter input connector: IEC 60320 C14 Adapter input voltage range: 100-240VAC, 50/60Hz |
| Power Consumption (Typical) | Monitor + AC/DC adapter ON: 10.31 W SLEEP: 1.55 W OFF: 0.2 W |
| Monitor Dimensions (with Stand) | 15.43″ x 8.24″ x 14.20″ / 391.9mm x 209.4mm x 360.7mm |
| Shipping Box Dimensions | 19.65″ x 17.17″ x 8.39″ / 499mm x 436mm x 213mm |
| Weight (Unpackaged) | 11.46 lbs / 5.2 Kg |
| Weight (Packaged) | 18.7 lbs / 8.5 Kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 90% |
| Sealability | Touchscreen sealed to bezel; Touchscreen sealed to LCD |
| MTBF | 50,000 hours demonstrated |
| Stand Options | Tilt, remove |
| Mounting Options | 75mm VESA mount |
| Other Features | 2 stage DPMS VESA DDC Plug and Play Security lock receptacle |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage – Elo P/N: E898247 5 year warranty coverage – Elo P/N: E898449 3 year warranty coverage + AUR – Elo P/N: E898648 4 year warranty coverage + AUR – Elo P/N: E894921 5 year warranty coverage + AUR – Elo P/N: E895125 |
| Regulatory approvals and declarations | UL, cUL, FCC, IC, CCC, CE, UKCA, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, WEEE |
| What’s in the Box | QIG, Japan Class-B TM info sheet, User Manual CD, 50W Power Brick, power cable, IEC 60320-C13 to NA/EU plug, DVI-D cable, VGA cable (DB-15 male to DB-15 male), USB cable (Type A plug to Type B plug), Audio cable, Stand base assembly, Filler Plate |
| Replacement DC Power Supply | United States: E005277 Europe: E571601 United Kingdom: E180092 China: E558862 Taiwan: E818655 Japan: E182546 Argentina: E887099 |
| AC Power Cable | North America: E378229 China: E030476 Taiwan: E637694 Japan: E849156 (3-pin to 2-pin adapter: E351985) |
| Optional Peripherals | Magnetic Stripe Reader (Black MSR) – Elo P/N: E628912 PCAP Stylus Pen – Elo P/N: E066148 |
| Stands, Mounts & Kits | 1723L VESA Mount Plate (White) – Elo p/n: E000451 1723L VESA Mount Plate (Black) – Elo p/n: E000450 |
| Optional Stand | Desktop Replacement Stands Black: P/N – E896711 White: P/N – E574298 |
