Features & Benefits
Integrated touch.

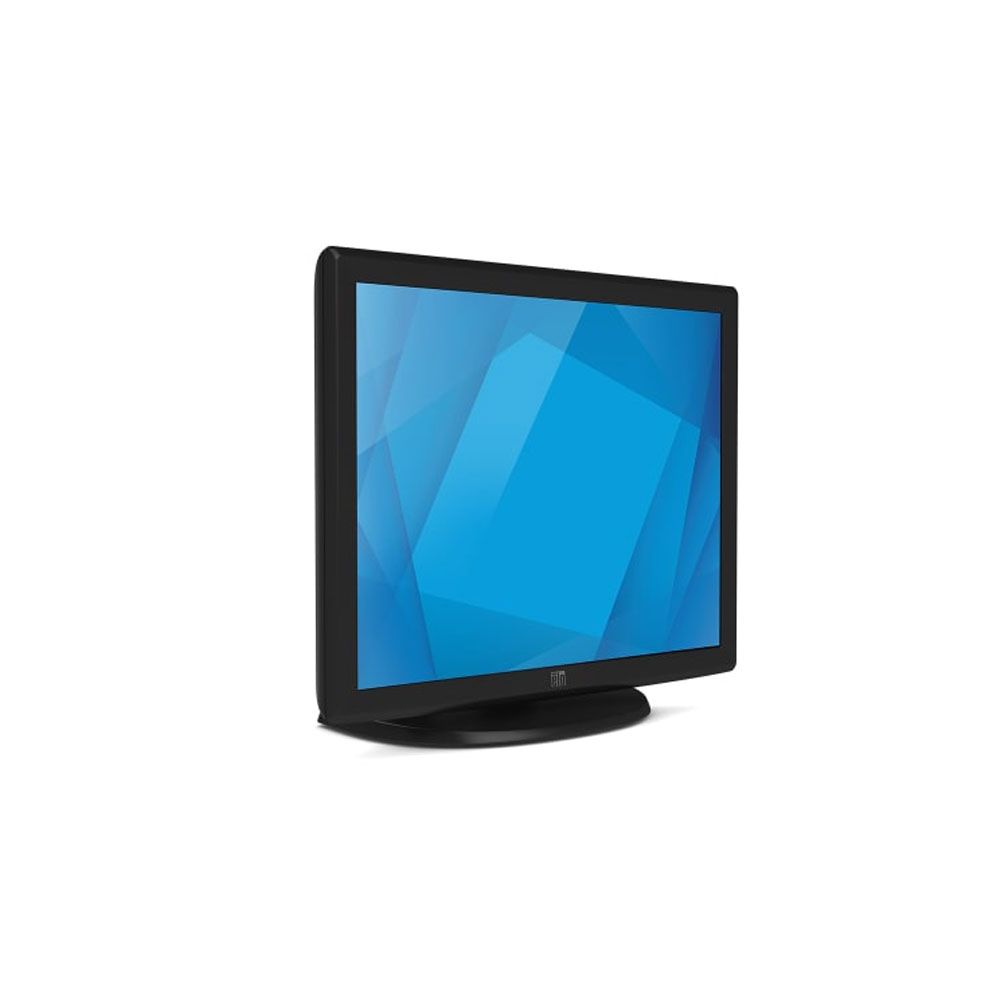

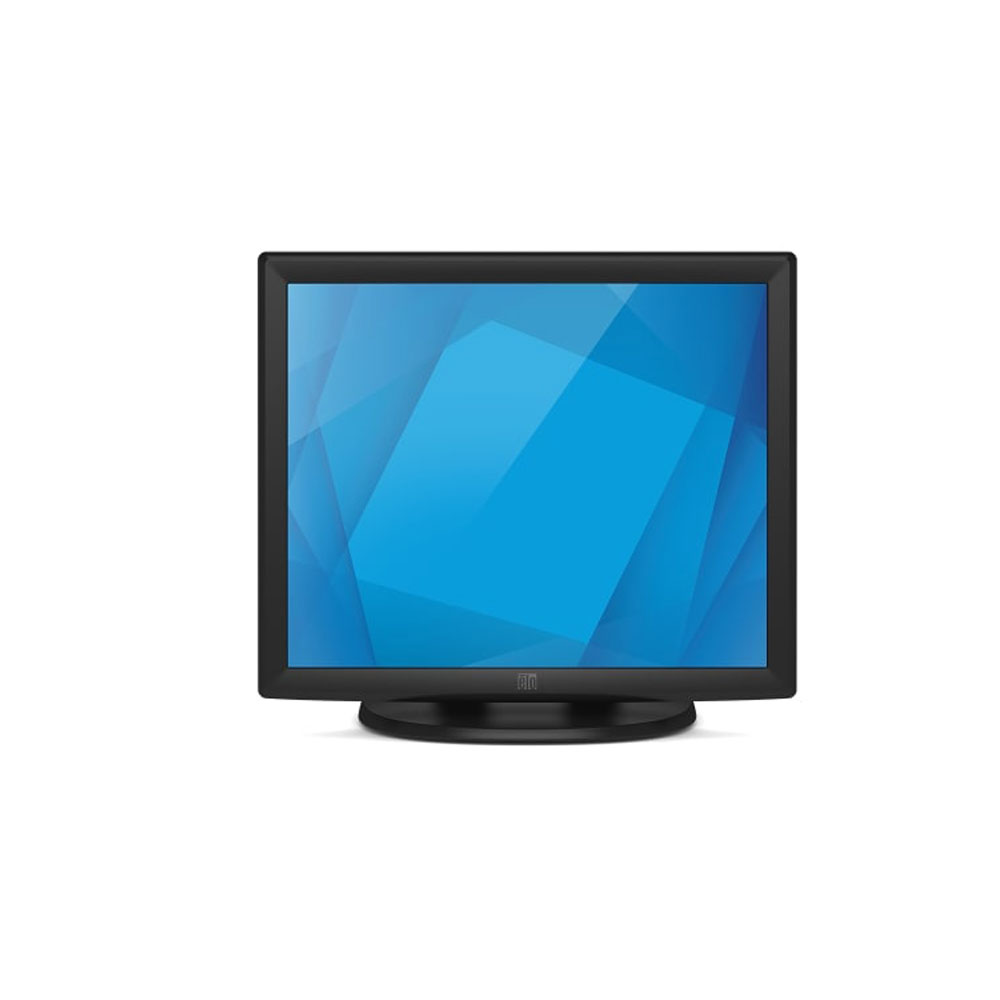

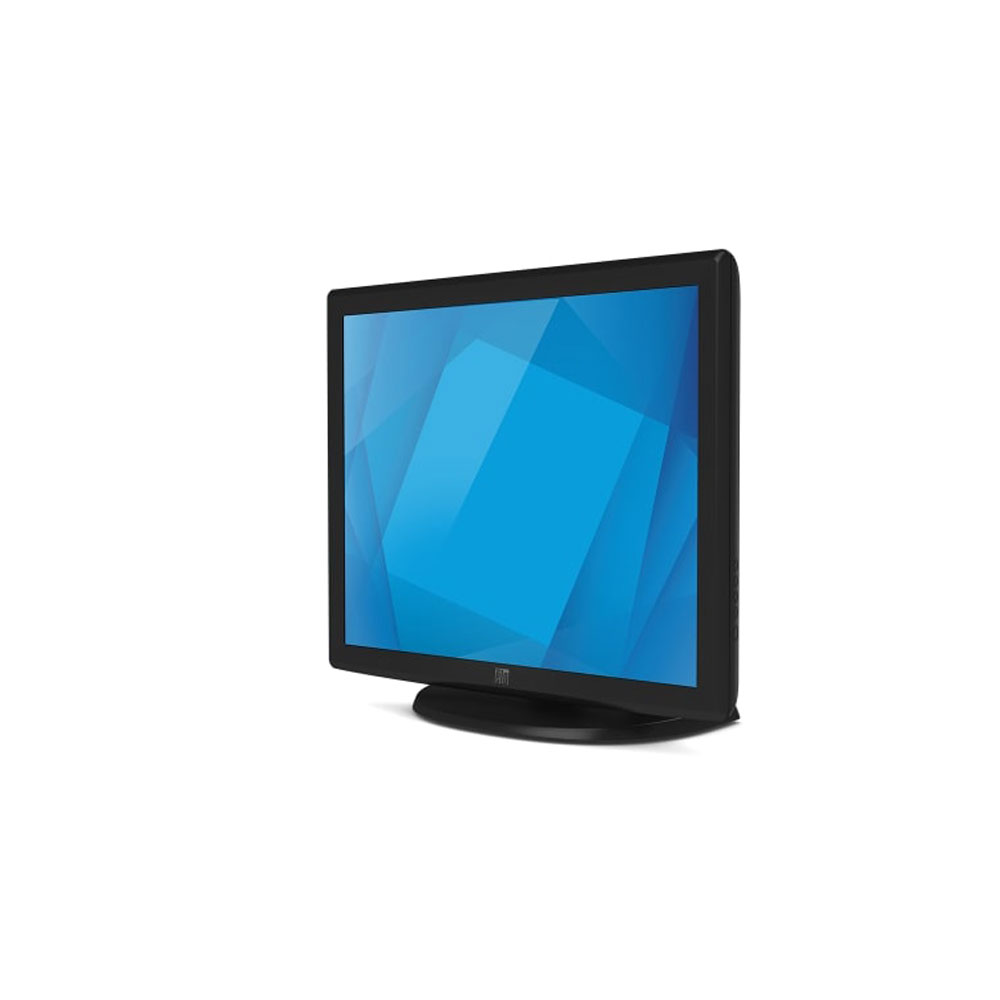

The 1915L desktop LCD touchmonitor is available with a choice of Elo’s single touch AccuTouch® five-wire resistive or IntelliTouch® surface acoustic wave (SAW) , both with a dual serial/ USB touch interface.
Flexible mounting.
The Elo 1915L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Commercial grade.
The 1915L touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- Affordability paired with Elo quality OR Consumer-grade pricing with Elo commercial-grade reliability
- Long-lasting product cycle
- Dual serial/USB interface
- Mounting holes on stand bottom for tabletop security
- Digital on-screen display (OSD)
- Three-year standard warranty
- Designed for touch features such as a stable tilt stand
- Sealed touchscreen against dirt, dust and liquid
- Removable stand and VESA mounting option
- Controls on the side rather than the front, plus lockout function for public use
- Worldwide agency approvals
Specifications
| Part Number(s) | IntelliTouch – E266835 AccuTouch – E607608 |
| Enclosure Color | Dark Gray |
| Touch Technology & Capacity | 5-Wire Resistive (AccuTouch®) – Single-Touch SAW (IntelliTouch® Surface Acoustic Wave) – Single Touch |
| Surface Treatment | Anti-glare |
| Diagonal Size | 19” diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 5:4 |
| Active Area | 14.8″ x 11.9″ / 376.3mm x 301.1mm |
| Resolution | 1280 x 1024 |
| Other Supported Resolutions | 1280 x 1024 at 60 or 75 Hz 1152 x 864 at 75 Hz 1024 x 768 at 60, 65, 70 or 75 Hz 832 x 624 at 75 Hz (Mac) 800 x 600 at 56, 60, 72 or 75 Hz 720 x 400 at 70 Hz 720 x 350 at 70 Hz 640 x 480 at 60, 66, 72 or 75 Hz |
| Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD panel: 250 nits AccuTouch: 193 nits IntelliTouch: 225 nits |
| Response Time-total (typical) | 5 msec |
| Contrast Ratio | 1000:1 |
| Input Video Format | Analog VGA |
| Input Video Signal Connector | Mini D-Sub 15-Pin VGA type |
| Power Supply | Internal AC, power cable-C5 type, optional external DC (power brick) Monitor input power signal specifications: 12VDC +/- 5% |
| Input Voltage | 100-240VAC, 50/60Hz |
| Input Connector | Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth) |
| Input Frequency | Horizontal: 31.5-80 kHz Vertical: 56.3-75 Hz |
| Adapter Input Connector | IEC 60320 C14 |
| Adapter Input Voltage Range | 100-240VAC, 50/60Hz |
| Power Consumption (Typical) | ON (monitor + 100V AC): 16.25W SLEEP (monitor + 100V AC): 1.19W OFF (monitor + 100V AC): 0.63W |
| On Screen Display | Controls (side): menu, up, down, select, power Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall Languages: English, German, Spanish, Japanese, French Lockouts: power, user controls |
| Monitor Dimensions (with Stand) | 16.9″ x 14.9″ x 8.2″ / 429mm x 379mm x 207mm |
| Shipping Box Dimensions | 21.28″ x 19.50″ x 11.23″/ 540mm x 495mm x 285mm |
| Weight (with stand) | 17.4 lb / 7.9 kg |
| Shipping Weight (With stand) | 25.8 lb / 11.7 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 90% |
| Sealability | Touchscreen sealed to bezel; Touchscreen sealed to LCD |
| MTBF | 50,000 hours demonstrated |

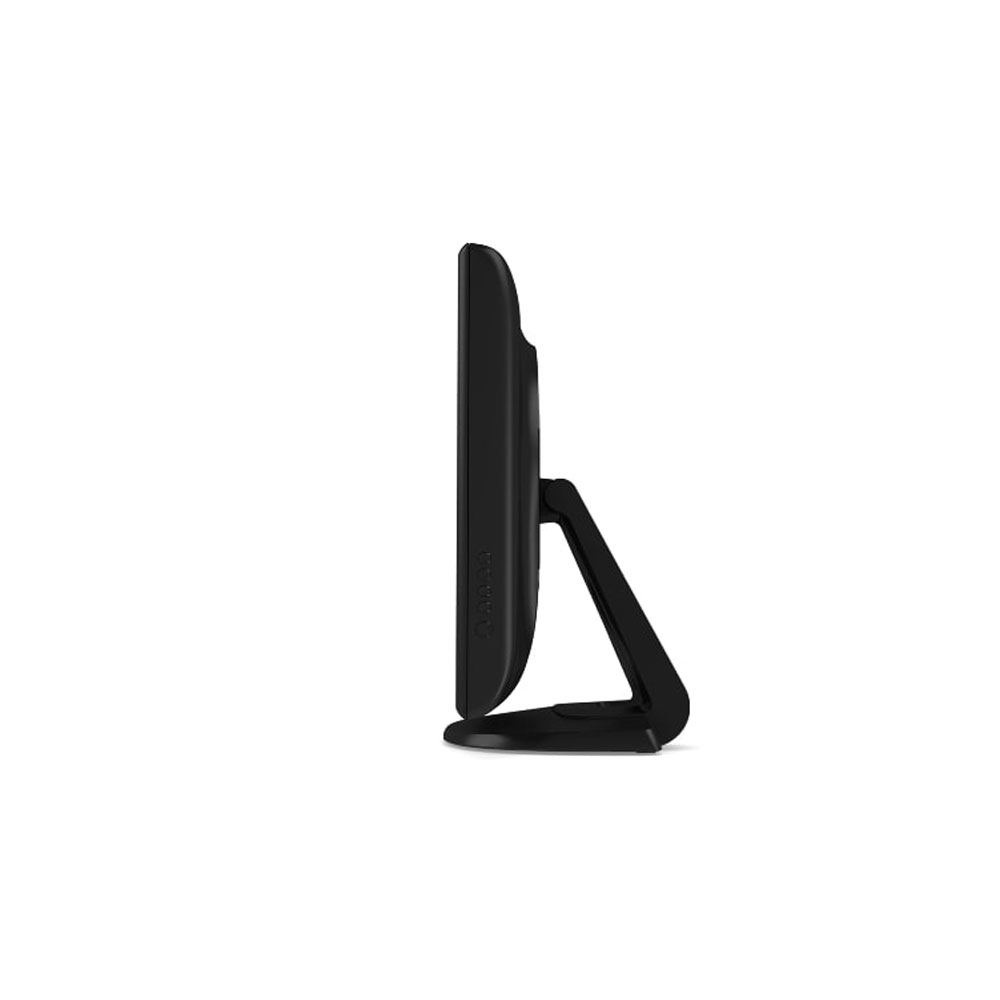

| Stand Options | Tilt, remove |

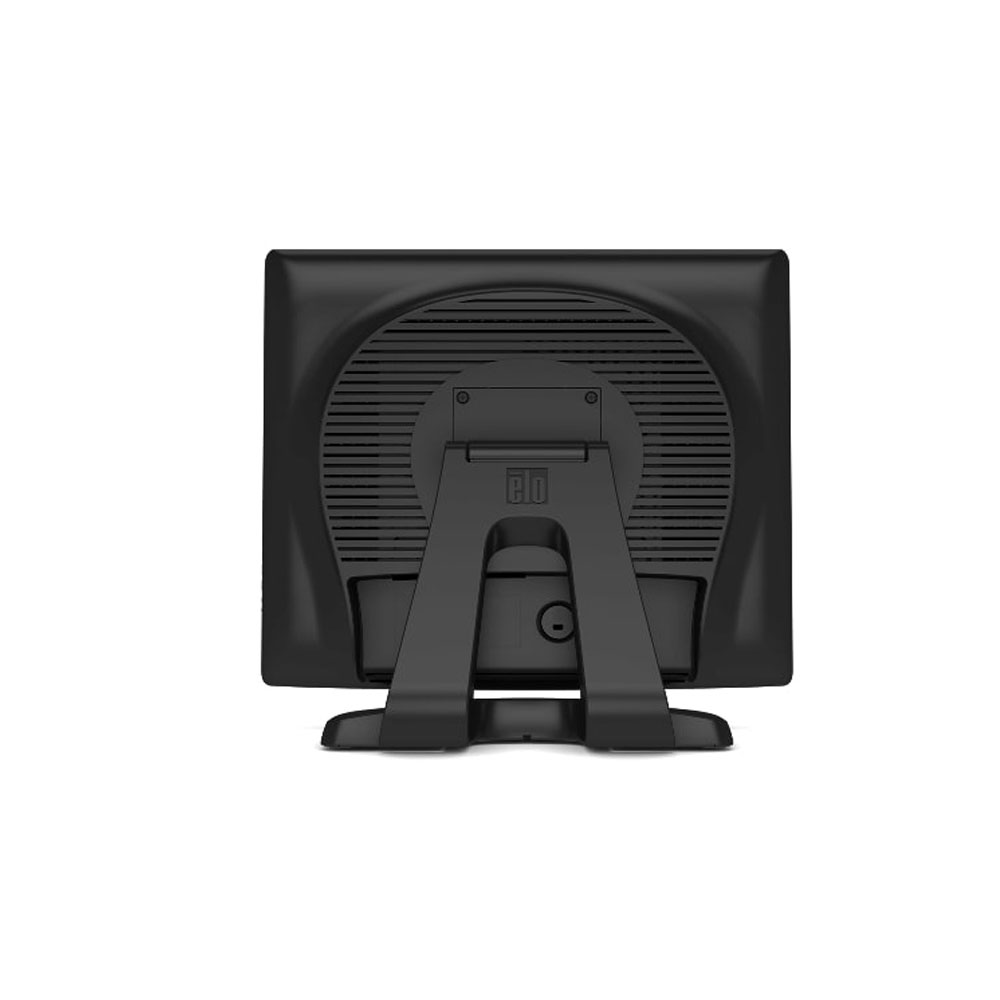

| Mounting Options | 100 mm VESA mount Threaded-through mounting holes, under stand |
| Other Features | Security lock receptacle |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage – Elo P/N: E898247 5 year warranty coverage – Elo P/N: E898449 3 year warranty coverage + AUR – Elo P/N: E898648 4 year warranty coverage + AUR – Elo P/N: E894921 5 year warranty coverage + AUR – Elo P/N: E895125 |
| Regulatory approvals and declarations | UL, cUL, FCC, CE, UKCA, VCCI, IC, RCM, Argentina S Mark, TUV, CCC, China RoHS |
| What’s in the Box | User Guide CD Quick Installation Guide (QIG) AC Power Cord Mickey 1.8M BK EU/KOREA AC Power Cord UL/SP-030+IS-034 1.8M BK Cable A55336-000 USB A-B 1830mmBK Cable DSUB-9PX2 1800mm BK W/PEBAG Cable VGA PC99 1.8M BK |
| Replacement DC Power Supply | The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E005277, is available at additional cost. |
| AC Power Cable | North American and EU AC power cables included (C5 type). For touchmonitors shipped to the UK, add a UK AC power cable at no cost by specifying Elo P/N: E540272. USA: E042259 |
| Optional Power Supply Brick | E217485 – Must also order appropriate following power cord-C14 Socket |
| Optional IntelliTouch Stylus Pen | Stylus pen with rubber tip, designed specifically for use with IntelliTouch surface wave touch technology. Part number D82064-000, available at additional cost. |
| Touch/Video/Audio/Accessory Cables: | Detachable touch and video cables are included |
| Optional Stand | Dark Grey – Elo P/N: E335194 |
