Elo Interactive Huddle Solutions
Purpose-built to make collaboration easy – simply connect the Huddle Kit with an Elo large format interactive display to create a robust huddle room solution.
*Perpetual Qwizdom Whiteboarding license
30 Day Free Trial of DisplayNote Launcher and Montage Wireless Content Sharing Software
14 Day Free Trial of AirServer Windows 10 Desktop Edition
Benefits
One Manufacturer
All components have been purpose-built to seamlessly integrate creating a turnkey solution driven by a single power supply.
Enterprise-grade
Backed by Elo’s 3-year standard warranty and industry leading support, each component has been designed to withstand the demands of commercial environments. Pair with an Elo interactive display to create a robust all-in-one enterprise-ready collaboration solution.
Easy Installation
Get your meeting spaces set up in minutes. Simply slide in the computer module, attach the Conference Camera and Stylus Kit and mount the display to the wall – all with a single cable to power everything. Now that’s collaboration that can scale.
Compatibility
Backed by a Windows 10 operating system, the Elo Huddle Kit offers a software agnostic platform supporting all major web conferencing applications including Microsoft Teams, Zoom, Cisco Webex, GoToMeeting and BlueJeans. By utilizing a familiar windows interface, companies can get up and running quickly without limitations and cumbersome training.
Collaboration Ready

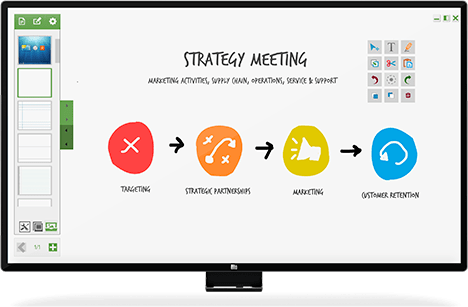

Whiteboarding
The user-friendly annotation and whiteboarding software from Qwizdom provides corporate environments with a full set of easy to use features – from multi-user writing and drawing to handwriting recognition, graphical input and full multimedia integration and capture, with either a stylus or your finger.
Video Conference
Enhance teamwork and collaboration in real time with Elo’s interactive display and conference camera. Designed for conference and huddle rooms, the simple and seamless solution delivers full HD video making it feel like an in-person meeting.
Wireless Content Sharing
DisplayNote Montage BYOD software enables wireless content sharing from any device onto your Elo display with no messy cables or time-consuming connection struggles. Connect teams and information in real time to empower faster, more reliable decision making and collaboration.
Professional Services
With EloCare℠ Professional Services, we make it easy to get projects done right by providing you with dedicated project managers to support you through important stages of your product lifecycle.
Whether managing the full scope of a major implementation or utilizing Elo resources to enhance your existing capabilities, EloCare Professional Services provides the support necessary to drive successful execution of your project.
Get Peace of Mind with EloCare
Elo offers a complimentary three-year standard warranty on all Huddle Kits with optional advance unit replacement coverage in the unlikely event your hardware requires service. It’s easy to enroll and simple to use, minimizes downtime, and reduces your overall hassle of ownership. In the event your device requires service, simply submit a Return Material Authorization (RMA) request through Elo’s online portal. If phone support doesn’t resolve the issue, we will ship you a replacement unit the next business day. Additionally, Elo offers optional four- and five-year extended warranty coverage.
*Advance unit replacement and extended warranty options apply to ECMG4 only.
Commercial-Grade Products Designed for Commercial-Grade Environments
- Backed by our 3-year standard warranty
- Purpose built for collaboration
- Ready for Use 24/7
- Free Technical Support with Standard Warranty
Specifications
| Part Number(s) | E380925 |
| Product | Huddle Kit |
| Weight (Packaged) | 12.57 lbs / 5.7 kg |
| Shipping Box Dimensions | 17.52″ x 6.06″ x 26.38″ / 445 mm x 154 mm x 670 mm |
| Compatibility | 3203L TouchPro 4303L TouchPro and IR 5553L TouchPro and IR 6553L TouchPro and IRMounting the camera to the bottom port will limit compatibility to Windows, Mac, or Ubuntu (with a VLC player) and limits resolution to 720p |
| What’s in the Box | i5 Win 10 Computer Module (ECMG4) – Elo P/N: E405488 Conference Camera – Elo P/N: E277819 (includes AEC cable) 2x Active Stylus (for PCAP only) – Elo P/N: E216215 (includes 2x AA battery) 2x Passive Stylus (for IR only) – Elo P/N: E727568 Stylus Tray 2x WiFi/BT Antenna 4x M6x50 screws 4x M8x50 screws 4x Spacers 2x thumb screws for Stylus Tray 2x thumb screws for Conference Webcam Whiteboard License Card DisplayNote Launcher License Card DisplayNote Montage License Card Quick Install Guide |
| Product | Elo Computer Module (ECMG4) |
| Processor | Intel Core i5-7500T Processor (6M Cache, up to 3.30 GHz) 6 MB Intel Smart Cache 8 GT/s Direct Media Interface 3 (DMI3) |
| Chipset | Intel H110 Chipset |
| Thermal Design Power (TDP) | 35W |
| Graphics | Intel HD Graphics 630 |
| BIOS | AMI |
| Memory (RAM) | 16 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots *Maximum memory using 2 slots. Expandable up to 64GB maximum. DDR4-2133/2400 @ 1.2V |
| Storage | 256GB m.2 Solid State Drive (SSD) GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less. |
| Video Out | 1 x HDMI (UHD capable) |
| USB Ports | 2 x USB 2.0 Type A 2 x USB 3.0 Type A |
| Ethernet Port | 1 x LAN RJ45 |
| Wireless | IEEE 802.11 a/b/g/n/ac (MU-MIMO) |
| Bluetooth | Bluetooth 5 |
| Audio Ports | 1 x 3.5 mm Line out 1 x 3.5 mm MIC in |
| Power Supply | Power provided by compatible Interactive Display |
| OS | Windows 10 64-bit (SAC) |
| Software | DisplayNote Montage and Launcher – with 30 day trial licenses Qwizdom Oktopus Whiteboard – with perpetual license |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -30°C to 60°C / -22°F to 140°F |
| Humidity | Operating: 20% to 80% Storage: 10% to 90% |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage – Elo P/N: E896120 5 year warranty coverage – Elo P/N: E896322 3 year warranty coverage + AUR – Elo P/N: E896699 4 year warranty coverage + AUR – Elo P/N: E896903 5 year warranty coverage + AUR – Elo P/N: E897104 |
| Product | Conference Camera |
| Field of View | Vertical: 65° ± 5% Horizontal: 80° ± 5% Diagonal: 96° ± 5% |
| Frame Rate | 30fps @ FHD |
| Focus Type | Fixed Focus |
| UVC Compatible | Yes – UVC 1.1 |
| Microphone | Analog Mic with Acoustic Echo Cancellation (AEC) |
| Supported Video Resolutions | FHD (1920 x 1080) HD (1280 x 720) VGA (640 x 480 and 640 x 360) |
| Video Format | YUY2/MJPG |
| Warranty | 3-year |
