Features & Benefits

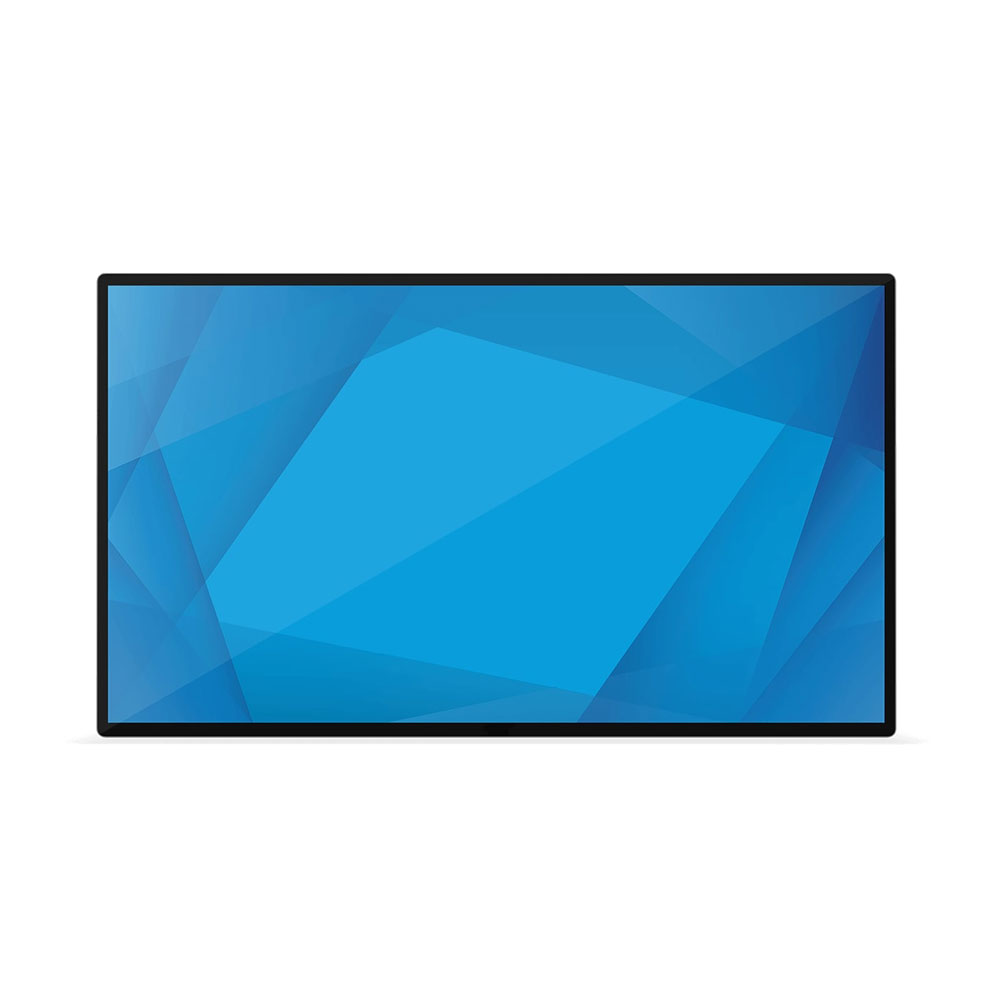

Create Immersive Interactive Experiences with the 55″ Digital Signage Display
- Retail
Endless Aisle Product
Information Signage
- Corporate
Video Conferencing
Interactive Whiteboard
Virtual Receptionist
- Healthcare
Capacity Management
Patient Room Display
Virtual Health
- Restaurant
Interactive Menu Board
Self-Order
Self-Checkout
- Industrial
Collaboration
Dashboarding
Inventory Management
Boot Barn Testimonial
Boot Barn chose Elo’s interactive digital signage display, the Elo Backpack® and EloView® software to power their Range Finder kiosk.
Collaboration for All Environments
Purpose-built to make collaboration easy – simply add the Huddle Kit with the 55″ Interactive Display to enable seamless meetings and heightened teamwork with the effectiveness of an in person meeting. Start driving concepts and innovation beyond what a phone call, projector or whiteboard and dry erase marker once did.
- Staff Training & Development
- Whiteboarding & Annotation
- Interactive Video Conferencing
- Virtual Health
Modular & Ready to Configure
The 5503L digital signage display offers a flexible design that can be easily configured to fit any use with Elo Edge Connect™ compatibility. Choose from a variety of accessories including payment devices, cameras, barcode readers and many others – configuration is up to you and can be easily changed at any time.
- Barcode Scanner
- EMV Cradle
- Webcam
- MSR
- NFC
Flexibility for Your Install

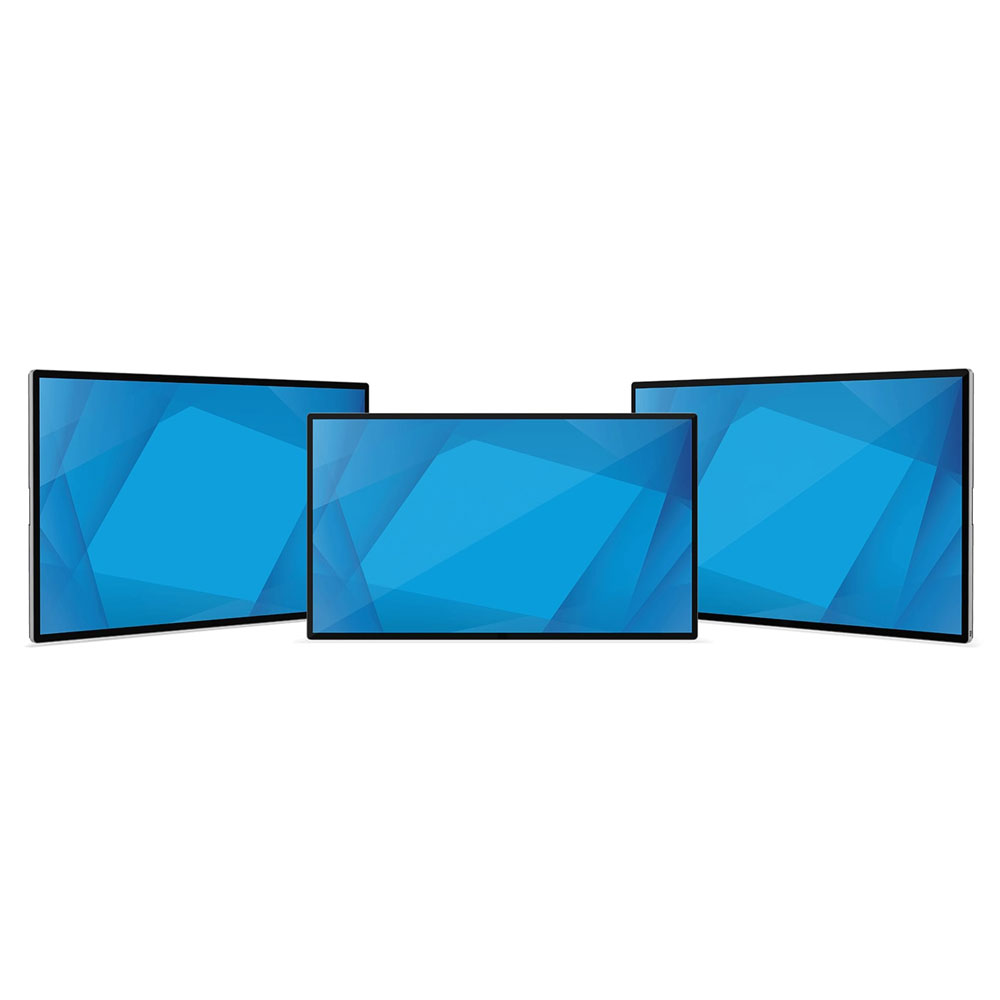

Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Touch Thru Glass Enabled with PCAP
Our TouchPro PCAP technology supports touch thru functionality for installations requiring a protective layer. Whether you want to flush mount the 55-inch touch screen monitor or fully encase it behind glass, our robust PCAP products are purpose-built for durability.
Add Windows Computing Power with Ease
The commercial-grade computer module transforms Elo’s 55″ touch screen monitor into a powerful, all-in-one, touch computer platform. Running Intel® Core™ 7th-Generation CPUs and enhanced graphics engine, the ECMG4s make field installation and maintenance easy with no external cables required.
Android – Scalability Simplified
With the Elo Backpack®, an Android-powered compute engine, you can transform the Elo 55″ touch screen into a scalable and powerful media platform. Powered by EloView®, content-delivery and remote-management of your entire network has never been easier. The low-power, solid-state, fan-less computing solution offers everything needed in an affordable, compact design.
* Supports a maximum resolution of 1920×1080
Elo EssentialEdge™ for Android
Are you looking for ways to make your digital transformation faster, easier and more affordable? Elo EssentialEdge for Android offers everything you need to build and operate interactive solutions for your business. With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
Elo Advance Unit Replacement – We Have Your Back.
As part of the three-year standard warranty for large format digital signage displays, Elo offers complimentary advance unit replacement to cover you in the unfortunate event your device requires service. If the issue can’t be resolved over the phone, Elo will provide a replacement unit and a pre-paid shipping label for the defective unit to be returned at no cost. Elo also offers rapid response times and On-Site Exchange for large format interactive displays at additional cost.
Commercial-Grade Products Designed for Commercial-Grade Environments
- Backed by our 3-year standard warranty with an optional extension to 4 or 5-years.
- Compliant with ADA and IBC requirements for protrusion when mounted to a wall with an Elo low-profile mount.
- Purpose built for touch
- Compliant with UL-60950 & IK-07 impact testing
- Ready for use 24/7 in high traffic environments
- Advance Unit Replacement included with standard warranty
- External control for remote management
- Free Technical Support with standard warranty
Specifications
| Part Number(s) | TouchPro PCAP (clear with anti-friction) – E531934 Infrared (clear) – E532139 |
| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) – 40 Touch with Palm Rejection and Touch Thru capability Infrared – 20 Touch |
| Touch Thru | TouchPro PCAP supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm |
| Touch Interfaces | USB-C |
| Diagonal Size | 55” diagonal, Active matrix TFT LCD (LED) |
| Active Area | 47.62″ x 26.79” / 1209.6 mm x 680.4 mm |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 @ 60hz |
| Other Supported Resolutions | 640×480 60Hz 800×600 56/60Hz 1024×768 60Hz 1280×720 60Hz 1280×960 60Hz 1280×1024 60Hz 1920×1080 50/60Hz |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Number of Colors | 8-bit + FRC (1.07 billion) |
| Brightness (typical) | LCD Panel: 450 nits PCAP: 382 nits IR: 405 nits |
| Response Time-total (typical) | 8 msec |
| Contrast Ratio | 4000:1 |
| On Screen Display | Let’s Get Started: Language Selection, Time Setting, Time Zone Video Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C, Internal-PC DP, Internal-PC HDMI Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio can be selected Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range are available in this menu. Audio Settings: Audio Input, Audio Output, Mute, Volume selection are available here. Power: Power Loss Behavior, Power Lock, Energy Saving Mode, Power Status Light options are available here Time: Time Set, On/Off Schedule OSD Settings: Recall Defaults, OSD Timer, OSD Language, OSD Lock and OSD Portrait Rotation, Touch Switch, Tabletop Information: Monitor, Temperature, Help and Support are available hereSee user manual for full details. |
| I/O Ports | HDMI 1.4 x2 USB-C (for Touch and video) RJ45 (for optional OSD remote) DisplayPort 1.2 3.5mm TRS jack (for RS232) 3.5mm Audio Headphones out Elo Edge Connect Micro USB 2.0 x4 |
| Control Buttons | Power Video Source Selection On Screen Display |
| Video | 2x HDCP-capable HDMI on Type A connector (HDR feature support) DisplayPort 1.2 connector USB-C connectorInput Video Horizontal Sync frequency range: 30 – 69KHz Input Video Vertical Sync (frame rate) frequency range: 24 – 64Hz |
| Headphone Output Connector | 3.5 mm TRS jack |
| Speakers | 2 x 10 W stereo speakers |
| Power | Input connector (power): IEC 60320-C13 Input signal specifications (power): 100-240VAC 50/60Hz |
| Maximum Operating Time | 24 hours/day |
| Power Consumption (Typical) | Monitor + AC/DC adapter: ON: 81 W SLEEP: 1.8 W OFF: 0.3 WMonitor with ECMG4 + AC/DC adapter: ON: 207 W SLEEP: 8.6 W |
| Dimensions | TouchPro PCAP: 50.07″ x 29.24″ x 3.15″ / 1271.8 mm x 742.6 mm x 80 mm IR: 50.07″ x 29.24″ x 3.54″ / 1271.8 mm x 742.6 mm x 89.8 mm |
| Shipping Box Dimensions | 55.12″ x 36.61″ x 9.61″ / 1410 mm x 930 mm x 244 mm |
| Weight (Unpackaged) | TouchPro PCAP: With ECMG4: 81.76 lbs / 37.09 Kg Without ECMG4: 77.69 lbs / 35.24 KgIR: With ECMG4: 82.67 lbs / 37.50 Kg Without ECMG4: 80.79 lbs / 36.65 Kg |
| Weight (Packaged) | TouchPro PCAP: Without ECMG4: 93.18 lbs / 42.27 KgIR: Without ECMG4: 93.93 lbs / 42.61 Kg |
| Operating Temperature | Portrait/Landscape Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F Table top Mode: 0° C to 35° C / 32°F to 95°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80% Storage: 10% to 95% (38.7°C max wet bulb temperature) |
| Mounting Options | VESA 400 x 400mm, M6 VESA 600 x 600mm, M8 |
| Sealability | Touchscreen sealed to bezel Touchscreen sealed to LCD |
| MTBF | 50,000 hours demonstrated |
| Warranty | 3-year with AUR included |
| Extended Service Options | 4 year warranty coverage + AUR – Elo P/N: E740135 5 year warranty coverage + AUR – Elo P/N: E740330 3 year warranty coverage + OSE – Elo P/N: E740527 4 year warranty coverage + OSE – Elo P/N: E740728 5 year warranty coverage + OSE – Elo P/N: E740918 |
| Regulatory approvals and declarations | UL 62368-1 FCC (US) cUL, IC (Canada) CB (International safety) (IEC/EN60950-1+IEC/EN62368-1) CE (Europe) VCCI (Japan) RCM (Australia) CCC, China RoHS (China) (for TouchPro version only) IK07 and UL60950 for ball drop test EAC (Russia) NOM (Mexico) |
| Energy Star | 8.0 |
| Other Features | Ambient Light Sensor – changes panel color to match ambient light, Auto Wake |
| What’s in the Box | Quick Install Guide HDMI 2.0 cable (Type A plug to Type A plug) USB cable (Type A plug to Type C plug) Power cable, IEC 60320-C13 to NA plug Power cable, IEC 60320-C13 to EU/KR plug Power cable, IEC 60320-C13 to UK plug Serial 3.5mm male to Serial DB9 female cable (MDC Cable) Energy label according to EU Regulation 1062/2010 |
| IDS Optional Accessories | Temperature Sensor Pro – Elo P/N: E534879 2D Barcode Scanner (SE4720) – Elo P/N: E384627 2D Barcode Scanner (SE4107) – Elo P/N: E245047 Magnetic Stripe Reader – Elo P/N: E001002 NFC/RFID Reader – Elo P/N: E001004 EMV Cradle for Ingenico ICMP – Elo P/N: E200788 EMV Cradle for Verifone E355 – Elo P/N: E201363 EMV Cradle for MagTek eDynamo – Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930 Fingerprint Scanner – Elo P/N: E134286 Wired OSD Remote – Elo P/N: E483757 Passive Stylus – Elo P/N: E727568 Active PCAP Stylus – Elo P/N: E216215 Replacement Cable Kit – Elo P/N: E141067 i5-7500 ECMG4 with No OS – Elo P/N: E227895 i5-7500 ECMG4 with Win10 (LTSC) – Elo P/N: E228087 i5-7500 ECMG4 with Win10 (SAC) – Elo P/N: E725044 i5-7500 ECMG4 with Win10 (LTSC) with DisplayNote Montage Software – Elo P/N: E898841 i5-7500 ECMG4 with Win10 (SAC) with DisplayNote Montage & Launcher Software & Qwizdom Whiteboard Software – Elo P/N: E405488 Elo Conference Camera – Elo P/N: E277819 Wallmount – Elo P/N: E727774 Huddle Kit – Elo P/N: E380925 Status Light (Micro-USB Connectivity) – Elo P/N: E644767 Elo Backpack® 4 (Value Model)- Elo P/N: E393754 Elo Backpack® 4 (Standard Model) – Elo P/N: E393359 RFID – Elo P/N: E673037 |
