Features & Benefits

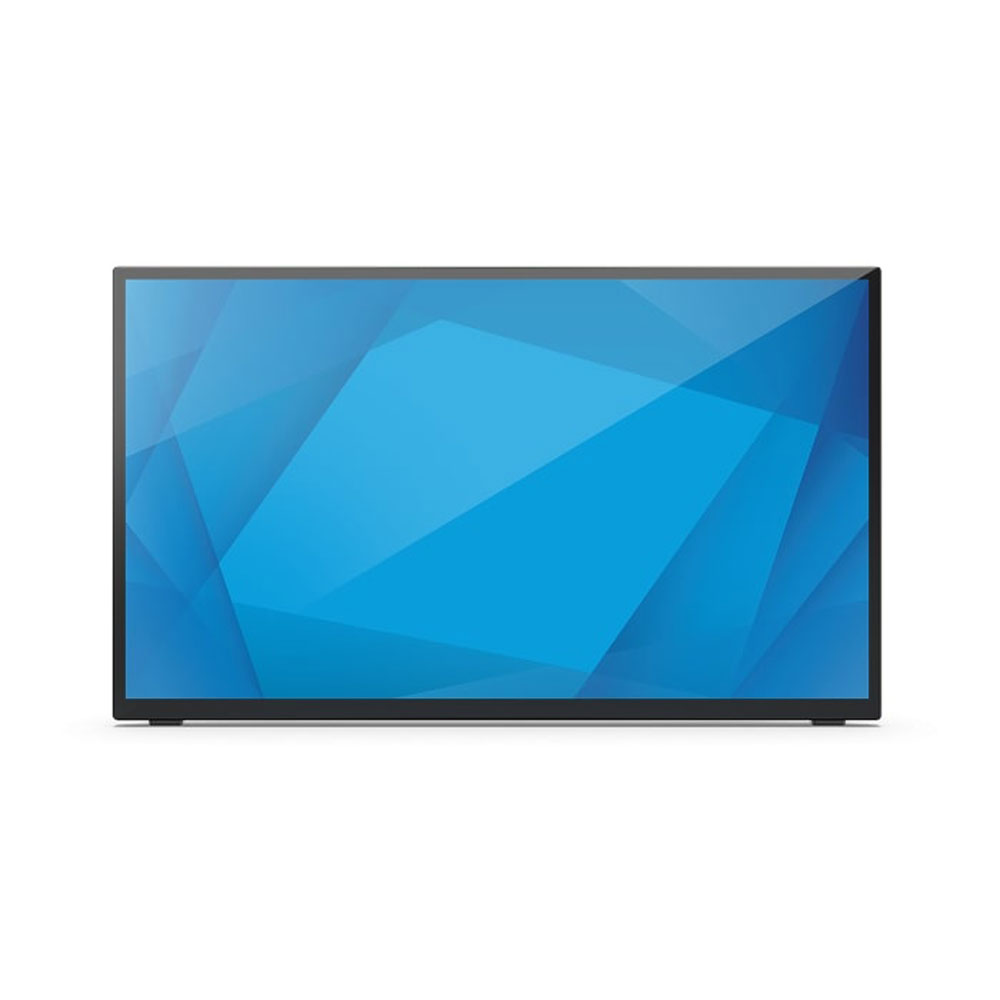

Minimalistic design to fit any space.

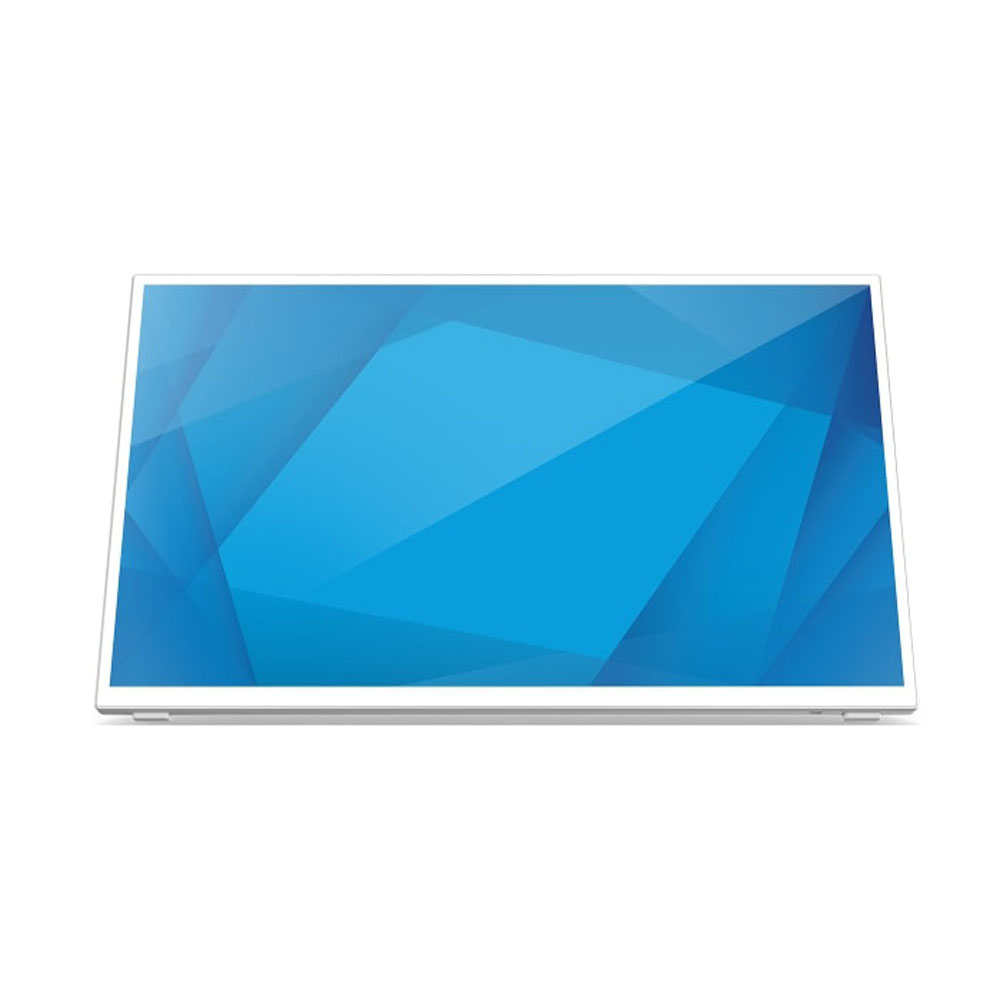

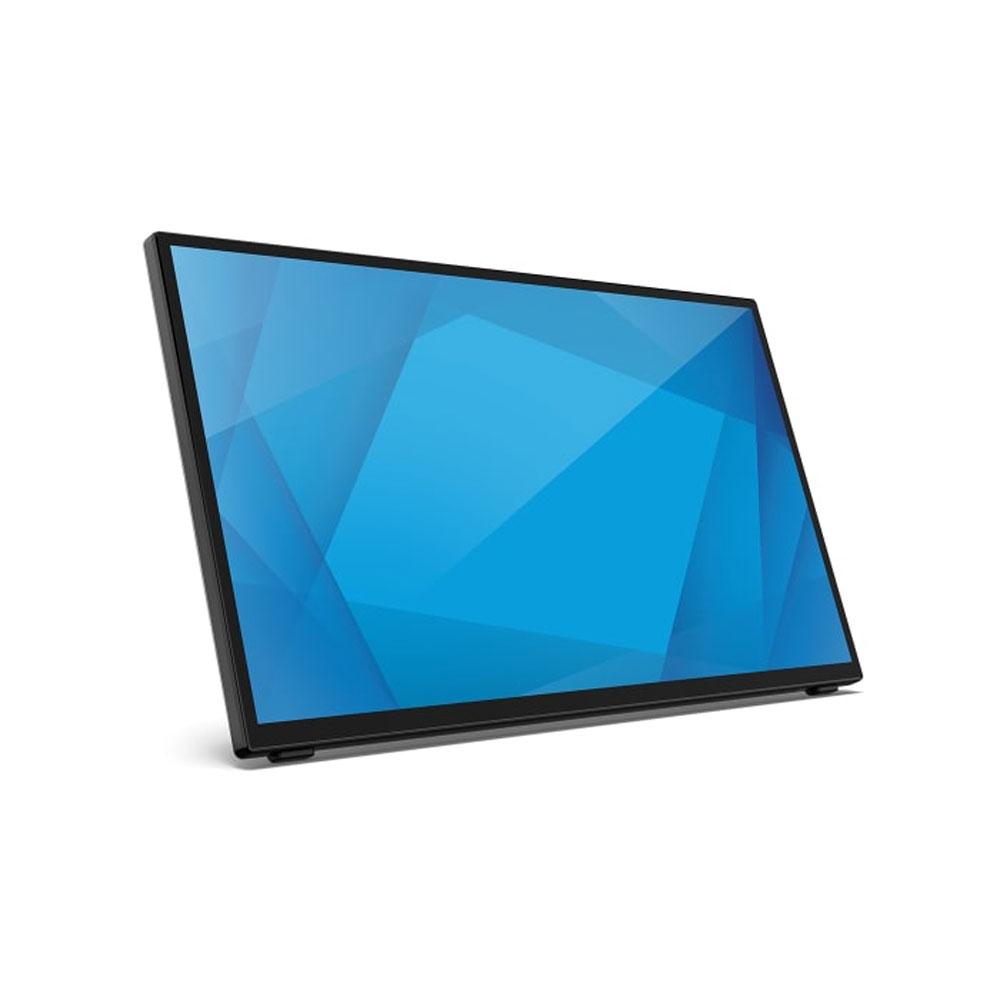

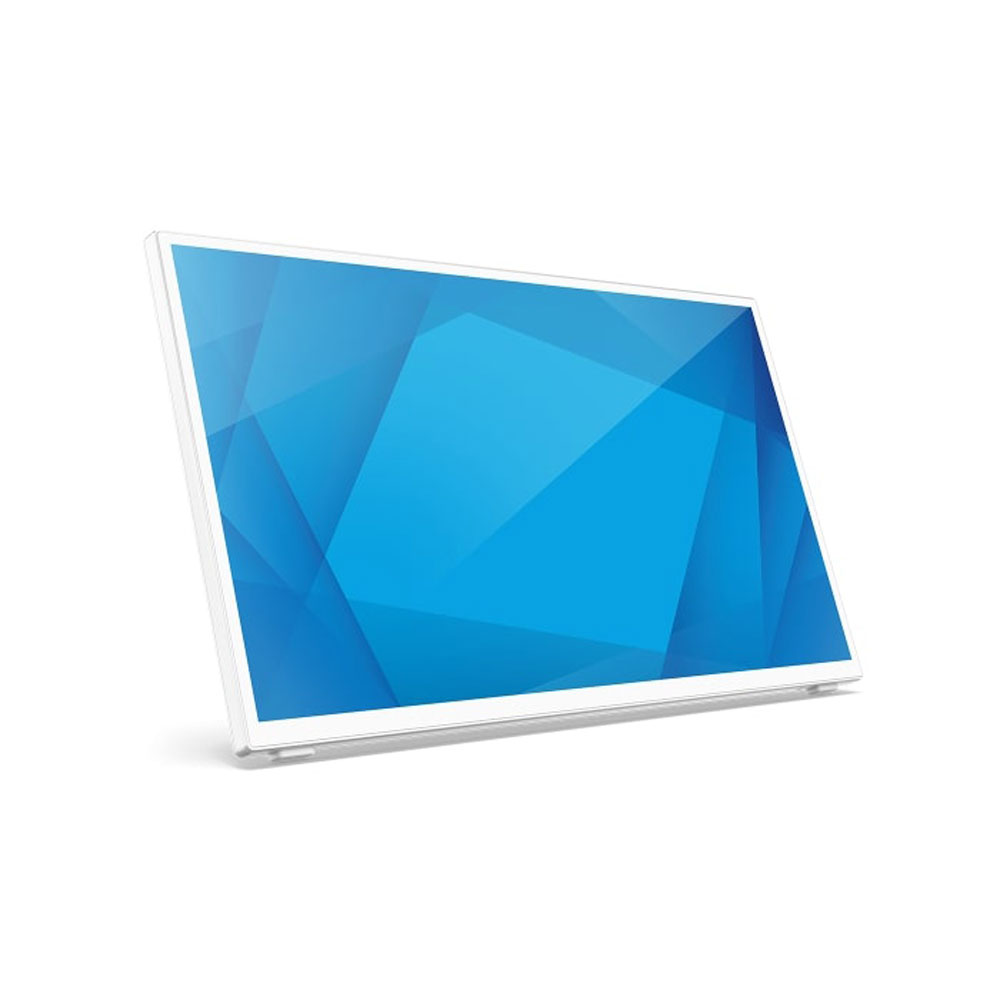

From 20 degrees to 70 degrees, angle the display where you want it.
Place it on a desktop, mount it on a wall or configure the 2470L to fit your space with VESA-compatibility.
Built-in speakers and integrated IO.
Durable, energy efficient touchscreen.
- Scratch-resistant glass surface.
- IK07 impact resistant.
- ES8.0 certified for greater energy efficiency.
Increase viewing comfort with low blue light and flicker free features.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Specifications
| Part Number(s) | Black, clear – E510459 Black, anti-glare – E511419 White, anti-glare – E266179 |
| Enclosure Color | White or Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) – 10 Touch |
| Diagonal Size | 23.8” diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area | 20.75″ x 11.67″ / 527.04 mm x 296.46 mm |
| Resolution | 1920 x 1080 @ 50, 60Hz |
| Other Supported Resolutions | 640 x 480 60Hz 640 x 400 70Hz 720 x 400 70Hz 800 x 500 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 @ 58Hz, 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB 1920 x 1080 50 60Hz |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD Panel: 250 nits TouchPro PCAP: 225 nits |
| Response Time-total (typical) | 16 msec |
| Contrast Ratio | 1000:1 |
| Touch Interface | USB |
| Surface Treatment | Clear or Anti-glare |
| On Screen Display | Accessible through touch OSD, and press Menu button to pop up touch OSD diagram. Controls: Menu, Power Settings: Brightness, Contrast, Video Priority, Clock, Phase, H-position, V-position, Auto-Adjust, Color Temperature, Low Blue Light, Volume, Mute, Audio Source Select, Line-in/Headphone Out OSD Timeout, OSD Language, Aspect Ratio, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power |
| I/O Ports | AC Input (IEC60320 C6) Audio in/out VGA HDMI DisplayPort USB 2.0 Type B 2x USB 2.0 Type A |
| Speakers | Two x 2W internal speakers |
| Video | VGA (Female DB-15 connector) HDMI (receptacle type A) DisplayPort |
| Input Video Frequency | Horizontal: 30 – 82KHz Vertical: 50 – 75Hz |
| Power | AC power input connector: (IEC 60320 C6) AC input voltage range: 100-240VAC, 50/60Hz |
| Power Consumption (Typical) | Only display and touch function available: ON (Default – 80% Brightness): 14.5 W ON (Typical – 100% Brightness): 16.7 W SLEEP: 0.5 W OFF: 0.16 W |
| Monitor Dimensions (without Stand) | 21.66″ x 12.96″ x 1.65″ / 550.2 mm x 329.3 mm x 41.8 mm |
| Shipping Box Dimensions | 24.80″ x 5.35″ x 16.46″ / 630 mm x 136 mm x 418 mm |
| Weight (Unpackaged) | 10.58 lbs / 4.8 kg |
| Weight (Packaged) | 15.65 lbs / 7.1 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature) |
| MTBF | 50,000 hours demonstrated |

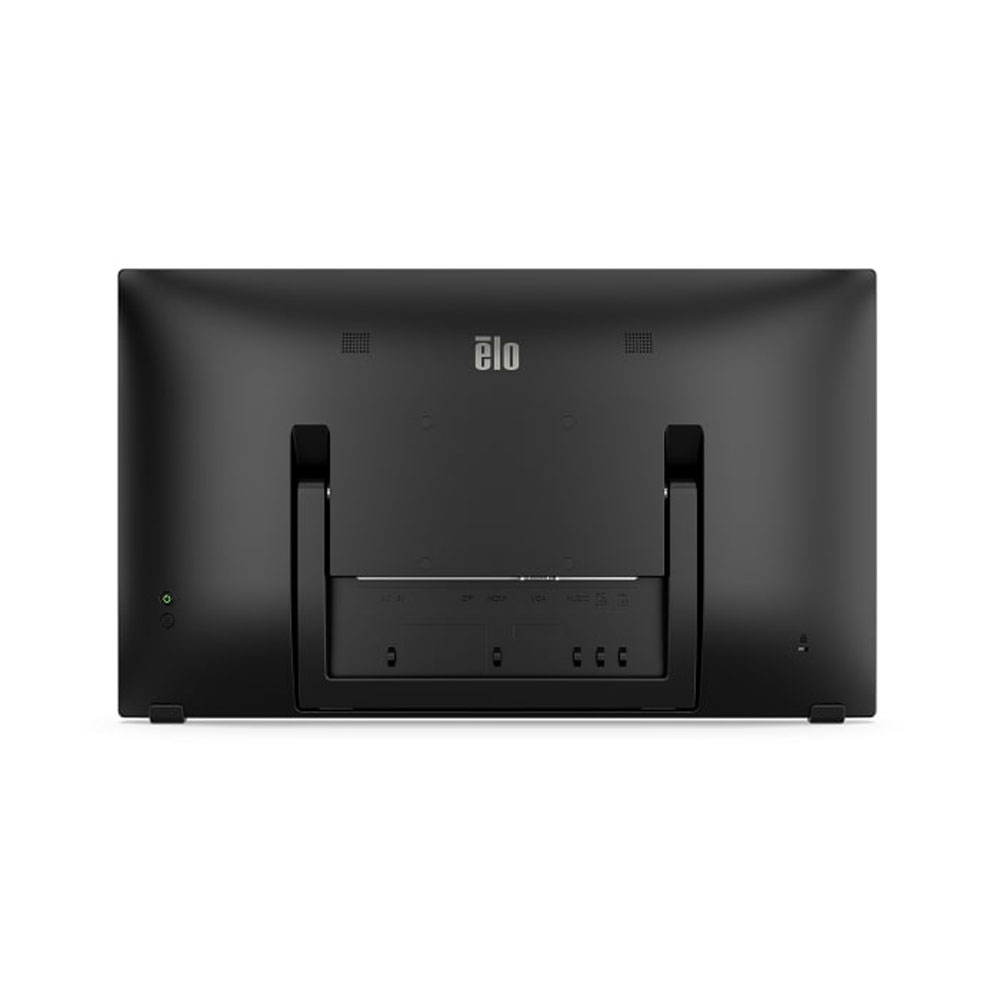

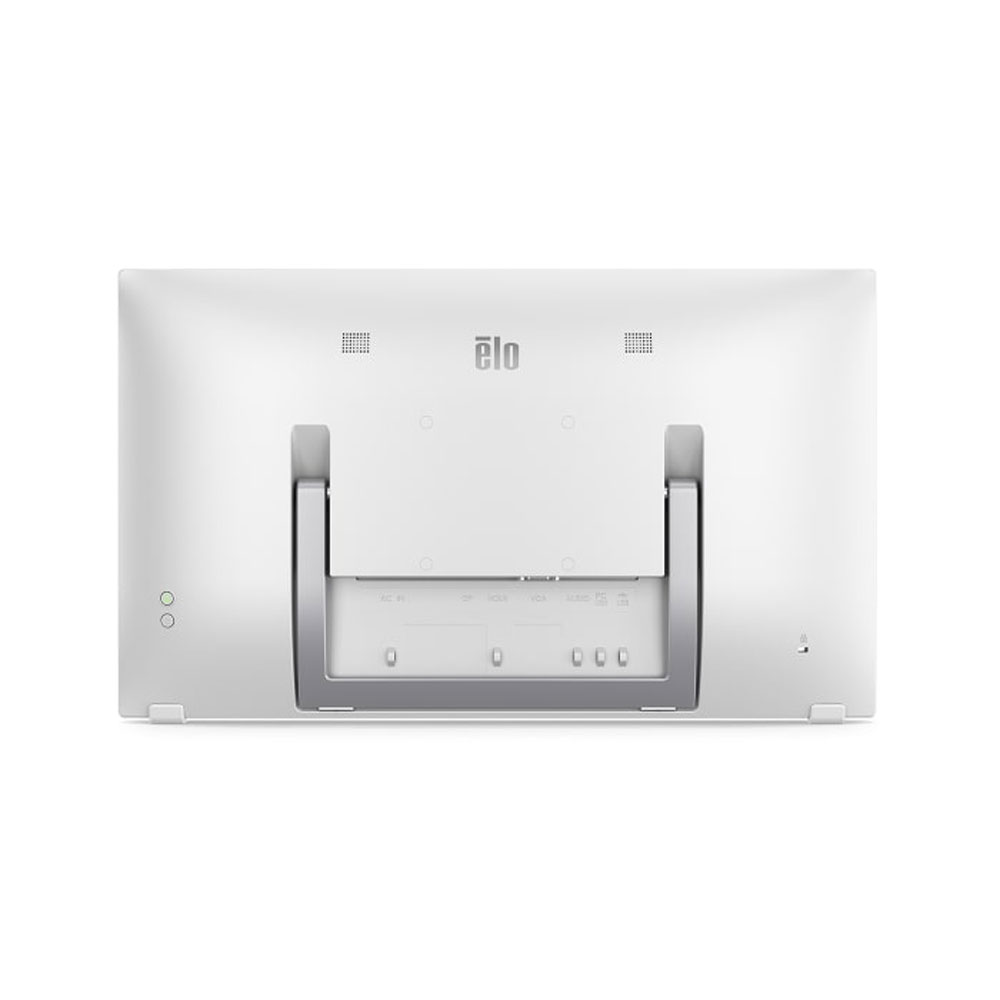

| Mounting Options | VESA 4-hole 100mm mounting interface on rear of unit |
| Other Features | Energy Star 8.0 TUV Rheinland (Flicker Free) TUV Rheinland (Low Blue Light) Power collection function via DDCCI |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage – Elo P/N: E898247 5 year warranty coverage – Elo P/N: E898449 3 year warranty coverage + AUR – Elo P/N: E898648 4 year warranty coverage + AUR – Elo P/N: E894921 5 year warranty coverage + AUR – Elo P/N: E895125 |
| Regulatory approvals and declarations | Argentina AR certificate Canada CUL, IC China CCC Europe CE United Kingdom UKCA Korea KCC Taiwan BSMI United States FCC, UL Japan VCCI, PSE International CB Australia RCM Russia EAC Mexico CoC RoHS, China RoHS, WEEE, REACH |
| Impact Protection | IK07 |
| What’s in the Box | 2470L Touchmonitor Quick Install Guide HDMI cable Touch USB cable NA Power cable EU Power cable EEI Label (EU) 2x EEI Label (UK) 2x Replace foot cover 5x Cable tie |
