Features & Benefits
Integrated touch.

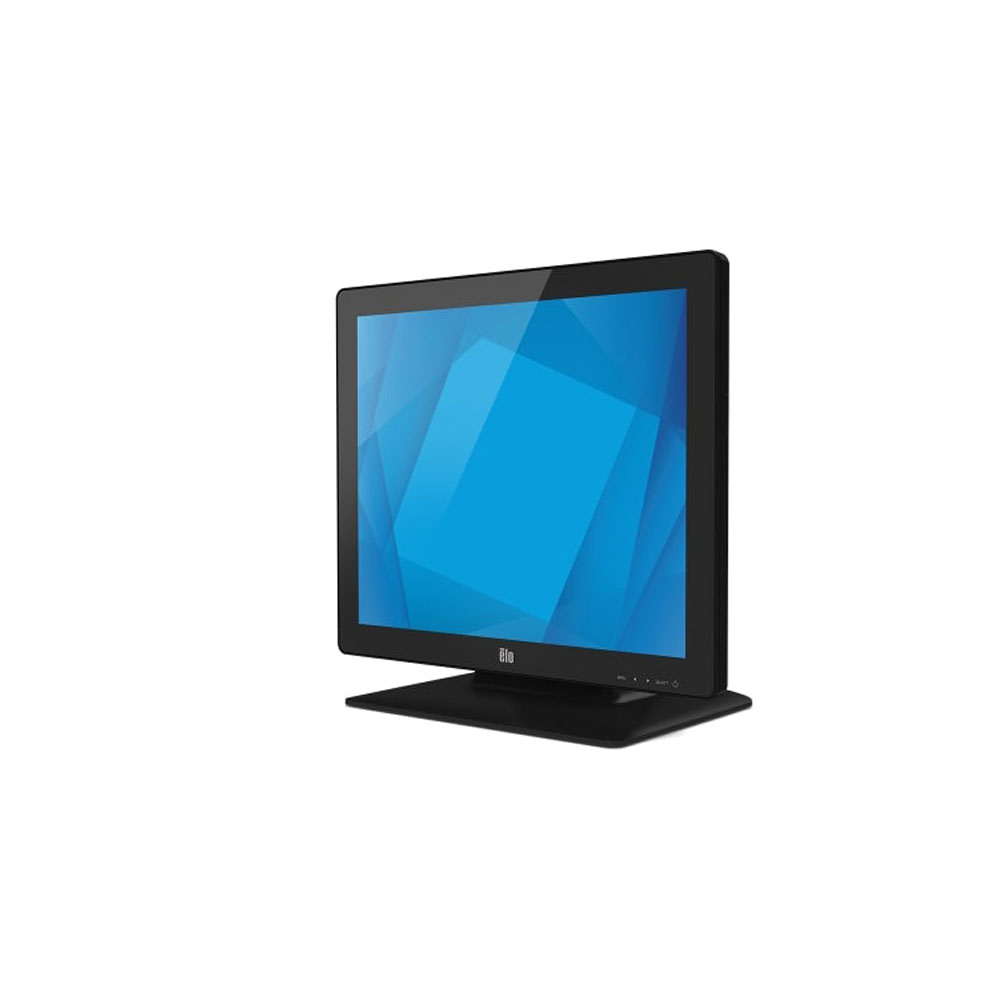

The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
MSR ready.
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Other features.
- Sleek and thin design with built-for-touch reliability
- 60% Energy savings using LED technology
- Removable base and mounting options including VESA, wall and pole-mounting
- Typical power consumption: 12W, internal and external power options
- Flexible and space-saving
- Sealed touchscreen against dirt, dust and liquids
- USB and RS232 serial connections
- Three-year standard warranty
Specifications
| Part Number(s) | IntelliTouch Black (Worldwide) – E344758 IntelliTouch ZB Black Antiglare (Worldwide) – E273226 IntelliTouch ZB Black (Worldwide) – E829550 AccuTouch Black (Worldwide) – E523163 AccuTouch ZB Black (Worldwide) – E144246 |
| Enclosure Color | White or Black |
| Touch Technology & Capacity | 5-Wire Resistive (AccuTouch®) – Single-Touch SAW (IntelliTouch® Surface Acoustic Wave) – Single Touch SAW ZB (IntelliTouch® Surface Acoustic Wave) – Single Touch |
| Diagonal Size | 15” diagonal, Active matrix TFT LCD (LED) |
| Monitor Thickness | 1.7″ / 43mm |
| Aspect Ratio | 4:3 |
| Active Area | 8.98″ x 11.97″ / 228.10mm x 304.13mm |
| Resolution | 1024×768 @ 60Hz, 75Hz |
| Other Supported Resolutions | 640 x 480 @ 60Hz, 75Hz 720 x 400 @ 70Hz 800 x 600 @ 56Hz, 60Hz, 75Hz 1024 x 768 @ 60Hz, 75Hz |
| Viewing Angle | Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total |
| Number of Colors | 16.2 million |
| Brightness (typical) | LCD panel: 300 nits AccuTouch: 240 nits IntelliTouch: 270 nits IntelliTouch ZB: 270 nits |
| Response Time-total (typical) | 23 msec |
| Contrast Ratio | 800:1 |
| Touch Interface | Serial (RS232) and USB |
| On Screen Display | Accessible through switches along the bottom: Controls: Menu, Up, Down, Select Settings: Contrast, Brightness, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese Lockouts: OSD, Power |
| Input Video Format | Analog VGA on Female DB-15 connector |
| Input Video Frequency | Horizontal: 31.5-60 kHz Vertical: 56-75 Hz |
| Power | Monitor AC input power connector: IEC 60320 C6 Monitor AC input voltage specifications: 100-240VAC, 50/60HzMonitor DC input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter) Monitor DC input voltage specifications: 12VDC +/- 5%Note: Optional AC-DC power adapter sold for this monitor: AC input connector: IEC 60320 C14 AC input voltage specification: 100-240VAC, 50/60Hz |
| Power Consumption (Typical) | Monitor Only ON: 10.5W SLEEP: 1.2W OFF: 0.4W |
| Monitor Dimensions (with Stand) | 14.1″ x 7.8″ x 12.5″ / 358mm x 197mm x 319mm |
| Shipping Box Dimensions | 19.2″ x 9.1″ x 19.1″ / 487mm x 231mm x 485mm |
| Weight (Unpackaged) | 9.48 lbs / 4.3 kg |
| Weight (Packaged) | 16.09 lbs / 7.3 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | 20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80% Storage: 10% to 95% |
| Sealability | Touchscreen sealed to bezel Touchscreen sealed to LCD |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | 75 mm VESA mount Capped through-mount holes |
| Other Features | Security lock receptacle |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage – Elo P/N: E898247 5 year warranty coverage – Elo P/N: E898449 3 year warranty coverage + AUR – Elo P/N: E898648 4 year warranty coverage + AUR – Elo P/N: E894921 5 year warranty coverage + AUR – Elo P/N: E895125 |
| Regulatory approvals and declarations | UL, cUL, FCC, IC, CCC, CE, UKCA, VCCI, KCC, e-Standby, Mexico NOM, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE |
| What’s in the Box | QIG, VGA cable (DB-15 male to DB-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Stand Base assembly, Filler Plate |
Replacement DC Power Supply | The monitor may be powered with DC voltage. An optional 12V DC power brick, part number E005277, is available at additional cost. |
AC Power Cable | NA and EU power cables included. United Kingdom AC power cables are included with the part numbers available for the EMEA region. China: E501749 |
Optional PCAP Stylus Pen | E066148 |
Touch/Video/Audio/Accessory Cables: | Detachable touch and video cables are included. |
Optional Peripherals | Magnetic Stripe Reader (Black MSR) – Elo P/N: E500356 |
Stands, Mounts & Kits | 1517L VESA Mount Plate (White) – Elo p/n: E000420 1517L VESA Mount Plate (Black) – Elo p/n: E000404 Mounting Bracket for 0700L as Rear-Facing Display – Elo p/n: E332358 1517L Replacement Stand (White) – Elo p/n: E483197 1517L Replacement Stand (Black) – Elo p/n: E264383 |
