Features & Benefits
Two-Glass Solution

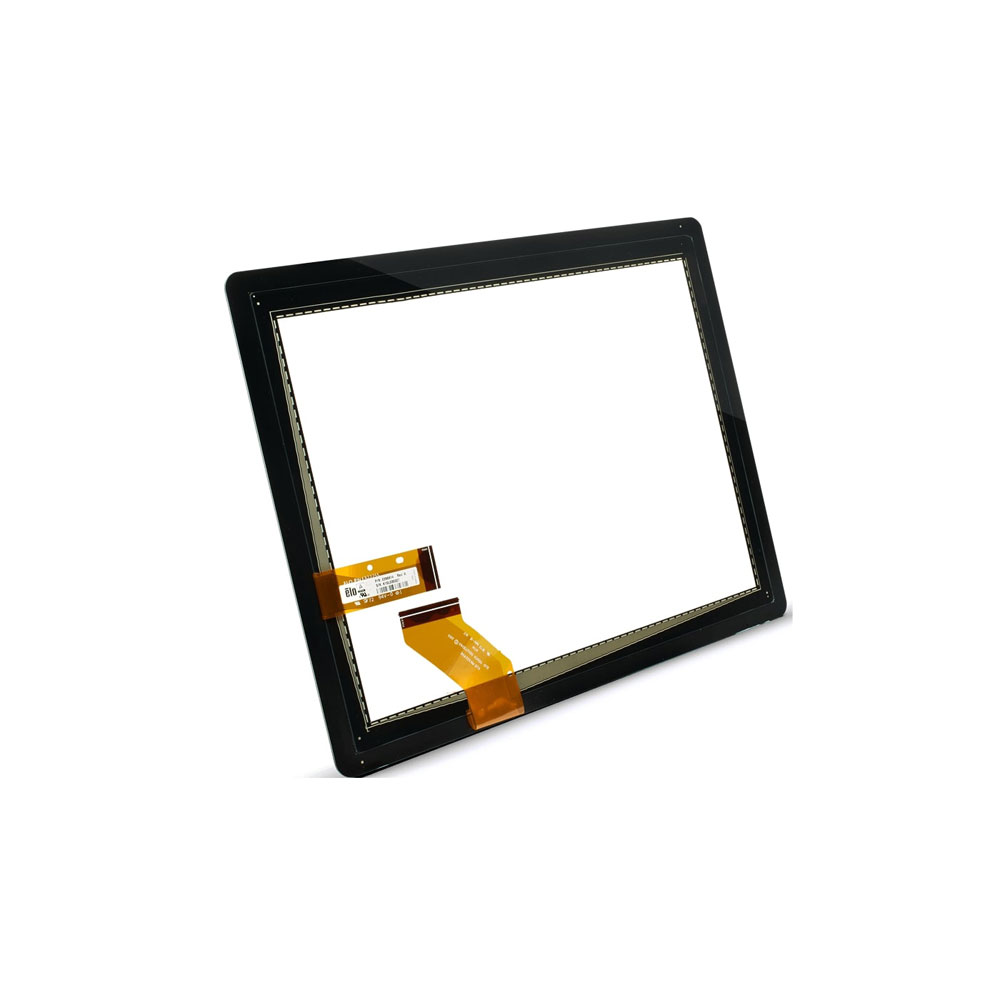

Elo’s two glass PCAP solution (2GS) offers pristine optical clarity, high touch durability and long term stability over temperature. TouchPro Pro-G is available in standard screen sizes up to 27-inches with up to 16-point multi-touch capabilities and zero-bezel design.
Customizable
Elo offers a wide range of customization options to meet your requirements including screen dimensions, cover glass thickness, bonding and surface treatments such as anti-glare.
Complete Solutions
Elo offers a complete projected capacitive touchscreen solution including touch screen, controllers, drivers for various operating systems and software utilities resulting in shorter development and integration time.
Factory Video
Elo’s new state of the art facility in Suzhou, China occupies a quarter of a million square feet and includes 155,000 square feet of manufacturing space with adjacent offices and warehouses. It is home to Elo’s industry leading touchscreen solutions including AccuTouch 5-wire resistive, IntelliTouch surface acoustic wave and TouchPro projected capacitive touchscreens.
Elo is proud to be the only company in the world that produces its own touch screens, ASICs, firmware and software drivers in-house.
Applications
- Interactive digital signage
- Self-service/self-automation
- Medical equipment manufacturers
- Industrial automation/Industrial panel PC
- Point-Of-Sale (POS) terminals
- Gaming and lottery terminal manufacturers
- Point-of-Information and transportation kiosks
Specifications
| Technology | PCAP (TouchPro® Projected Capacitive) |
| Number of Touches | Multi Touch (16) |
| Input Methods | Finger Gloved hand Passive stylus |
| Dimensions | sizes from 7″ to 22″ |
| Light Transmittance | ≥ 90% |
| Haze | < 1% |
| Overall Thickness | 3.1mm |
| Cover Glass Thickness | 1.8mm |
| Surface Treatment | Anti-glare Anti-fingerprint Anti-smudge |
| Durability | Over 50 million touches in one location |
| Positional Accuracy | ± 1.5mm |
| Interface | USB (Standard), I2C, HID Over I2C (Optional) |
| Report Rate | ≥ 100Hz |
| Operating System | Windows XP Windows 7 Windows 8 Linux Android |
| Utilities | Multiple monitor Various touch modes Touch zones |
| Operating Temperature | -20° to 70°C (Non Condensing) |
| Humidity | RH <90% (Non-Condensing) |
| Safety Approvals | UL |
| Warranty | 2-year limited warranty |
| Note | Actual technical specifications are dependent on multiple design variables including touch IC and screen size. Values above are for reference only. |
