Features & Benefits
Single Cable Connection

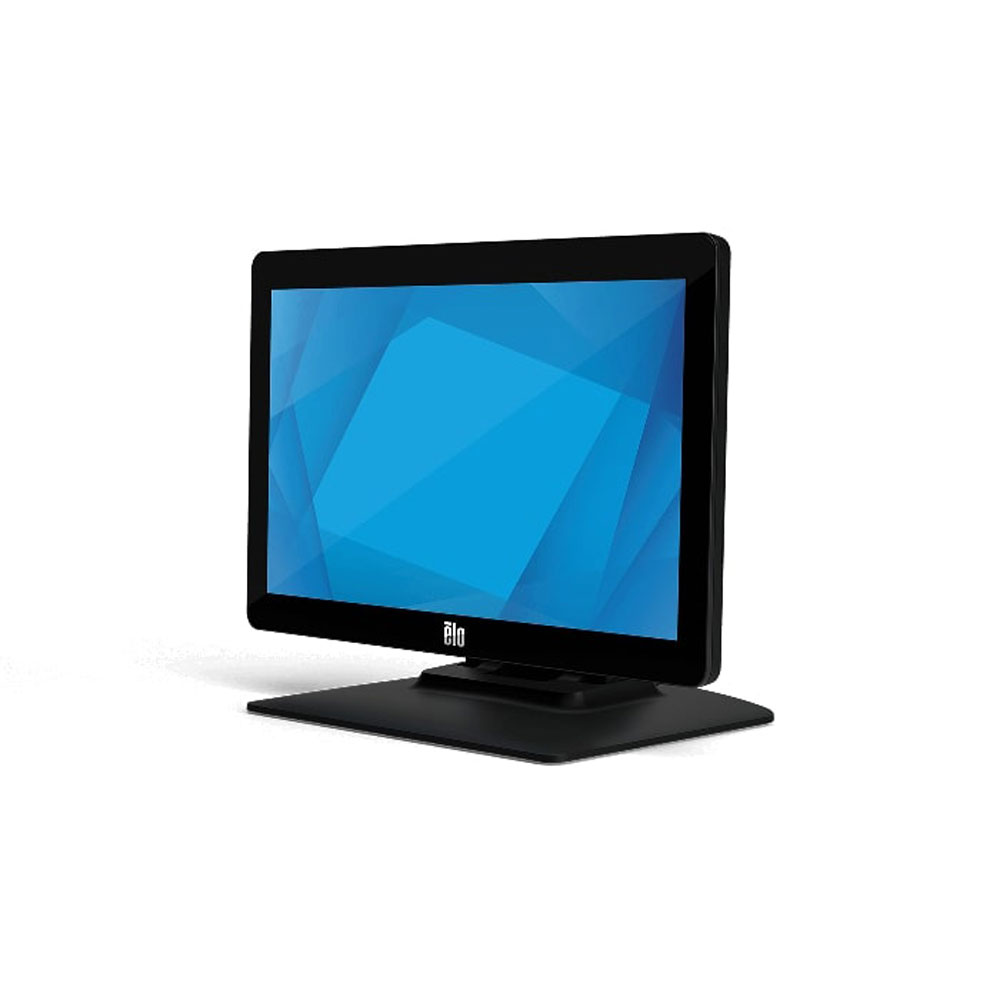

The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.
One for You.
One for Your Customers.
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.
Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
- Retail
- Hospitality
- Government
- Restaurant
- Industrial
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
EMV Cradles
The ability to take payment is essential to complete a transaction. The 1502L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.
Barcode Scanner
Enhance POS terminals and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.
MSR
Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.
Mount with Flexibility
Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.

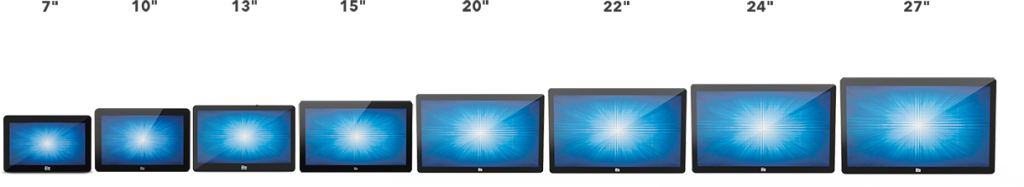

Brilliant Displays from 7 to 27-inches
The brilliant touchscreens with Elo’s industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.
Specifications
| Part Number(s) | PCAP FHD USB-C With Stand (Worldwide) – E155645 PCAP FHD USB-C Without Stand (Worldwide) – E125496 PCAP HD With Stand (Worldwide) – E318746 |
| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (Projected Capacitive) – 10 Touch |
| Diagonal Size | 15.6” diagonal, Active matrix TFT LCD (LED) |
| Monitor Thickness | 1.28″ / 32.4 mm panel depth |
| Aspect Ratio | 16:9 |
| Active Area | 13.55″ x 7.62″ / 344.16 mm x 193.5 mm |
| Resolution | FHD model: 1920 x 1080 HD model: 1366 x 768 |
| Other Supported Resolutions | FHD model: 640 x 480 60Hz 640 x 400 70Hz 720 x 400 70Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 50, 60Hz 1280 x 800 60Hz, 60Hz RB 1280 x 960 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB 1920 x 1080 50, 60HzHD model: 640 x 480 60Hz 640 x 400 70Hz 720 x 400 70Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 50, 60Hz 1360 x 768 60Hz |
| Viewing Angle | FHD Model: Horizontal: ±80° / 160° total; Vertical: ±80° / 160° totalHD Model: Horizontal: ±45° / 90° total; Vertical: -35°/ +15° / 50° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | FHD model LCD Panel: 250 nits PCAP + DC power: 225 nits PCAP + USB-C 5V power: 180 nitsHD model LCD Panel: 220 nits PCAP + DC power: 198 nits |
| Response Time-total (typical) | FHD model: 30 ms HD model: 10 ms |
| Contrast Ratio | FHD Models: 700:1 / HD Models: 400:1 |
| Touch Interface | USB |
| Surface Treatment | Anti-glare |
| On Screen Display | Accessible through switches along the bottom: Controls: Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only) Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese Lockouts: OSD, Power |
| I/O Ports | FHD Model: 1 x USB Type-C 1 x Audio jack (Line-in) 1 x VGA (Micro-HDMI female connecter) 1 x HDMI 1 x 12V D/C input 3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripheralsHD Model: 1 x USB Type-B 1 x Audio jack (Line-in) 1 x VGA (Mini-VGA female connecter) 1 x HDMI 1 x 12V D/C input 3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals |
| Speakers | 2 x 2W internal speakers |
| Video | FHD Model: Analog VGA HDMI USB Type-C (support DP Alt mode) *Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issuesHD Model: Analog VGA HDMI |
| Input Video Format | Horizontal: 31.5 – 82 KHz Vertical: 50 – 75 Hz |
| Power | FHD Model: Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A Option 2: External DC Adapter 12V/36W in box Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth) Monitor input voltage range: 12VDC +/- 5% Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length) Adapter input voltage range: 100-240 VAC Input frequency: 50-60 HzHD Model: External DC Adapter 12V/40W in box Monitor input power connector: Coaxial power jack (2.5mm pin outer diameter, 6.4mm barrel inner diameter) Monitor input voltage range: 12VDC +/- 5% Adapter output power connector: DC barrel plug (2.5mm (+0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length) Adapter input voltage range: 100-240 VAC Input frequency: 50-60 Hz |
| Power Consumption (Typical) | FHD Model (monitor + adapter): ON: 9.5 W SLEEP: 1.87 W OFF: 0.2 WHD Model (monitor + adapter): ON: 10.2 W SLEEP: 0.4 W OFF: 0.2 W |
| Monitor Dimensions (without Stand) | 9.62″ x 15.23″ x 1.28″ / 244.39 mm x 386.96 mm x 32.4 mm |
| Monitor Dimensions (with Stand) | 11.21″ x 15.23″ x 7.84″ / 284.65 mm x 386.96 mm x 199.12 mm |
| Shipping Box Dimensions | With Stand: 8.03″ x 17.76″ x 13.54″ / 204 mm x 451 mm x 344 mm Without Stand: 6.89″ x 17.76″ x 12.60″ / 175 mm x 451 mm x 320 mm |
| Weight (Unpackaged) | With Stand: 6.72 lbs / 3.05 kg Without Stand: 3.62 lbs / 1.64 kg |
| Weight (Packaged) | With Stand: 11.05 lbs / 5.01 kg Without Stand: 7.47 lbs / 3.39 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature) |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | VESA 4-hole 75mm and 100mm mounting interface on rear of unit |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage – Elo P/N: E898247 5 year warranty coverage – Elo P/N: E898449 3 year warranty coverage + AUR – Elo P/N: E898648 4 year warranty coverage + AUR – Elo P/N: E894921 5 year warranty coverage + AUR – Elo P/N: E895125 |
| Regulatory approvals and declarations | Canada cUL, IC Europe CE United Kingdom UKCA Japan VCCI United States UL, FCC China CCC Korea, KCC, e-standby Australia RCM Mexico NOM Taiwan BSMI International CB RoHS, China RoHS, WEEE, REACH India BIS Russia EAC |
| Ingress Protection | IPX1 for front side |
| Impact Protection | FHD Model: IK07 |
| What’s in the Box | FHD Model: Touchmonitor Quick Install Guide HDMI cable Power brick 2x cable clamps 2x tie wraps EEI Label USB Cable (USB Type-A to Type-C) NA Power cable EU Power cable 3x screws (M3x8mm) for cable clamps 2x screws (M3x10mm) for cable doors 4x screws (M4x10mm) for E125496 onlyHD Model: Touchmonitor Quick Install Guide HDMI cable Power brick 2x cable clamps 2x tie wraps Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male) USB cable (USB Type A plug to USB Type B plug) Audio cable EEI Label |
| Optional Peripherals | Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 2D Barcode Scanner (Black – SE2707) – Elo P/N: E393160 2D Barcode Scanner (Black – SE4720) – Elo P/N: E384627 2D Barcode Scanner (Black – SE4107) – Elo P/N: E245047 PCAP Stylus Pen – Elo P/N: E066148 EMV Cradle for MagTek eDynamo – Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930 Status Light (Micro-USB Connectivity) – Elo P/N: E644767 Temperature Sensor Pro – Elo P/N: E534879 3D Camera – Elo P/N: E134699 Webcam – Elo P/N: E201494 RFID – Elo P/N: E673037 |
| Stands, Mounts & Kits | Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088 Tabletop Stand for 15-inch Display (Black) – Elo P/N: E044162 Tabletop Stand for 22” I-Series (100mm VESA) – Elo P/N: E044356 Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382 Floor Stand (75mm or 100mm VESA) – Elo P/N: E048069 Pole Mount – 6 inch (75mm or 100mm VESA) – Elo P/N: E047458 Pole Mount – 12 inch (75mm or 100mm VESA) – Elo P/N: E047663 Pole Mount – 18 inch (75mm or 100mm VESA) – Elo P/N: E047864 Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151 1.8m Cable Kit (HD Model only) – Elo P/N: E210789 3m Cable Kit (includes VGA, USB, HDMI and audio cables) – Elo P/N: E210606 Power Brick Kit – 1.8m Power Cable – Elo P/N: E211174 Power Brick Kit – 3m Power Cable – Elo P/N: E210973 Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m (FHD model only) – Elo P/N: E214097 Power USB to USB-C/DC-IN (2.1 mm) cable – 3 m (FHD model only) – Elo P/N: E214282 Elo Stand 1302L – Black (75 mm VESA) – Elo P/N: E307788 Wallaby™ POS Stand (Black) – Elo P/N: E949536 USB-C to USB-C Cable Kit – Elo P/N: E710364 VGA-DB15 to Micro Cable Kit – Elo P/N: E710549 DVI-D to HDMI Cable Kit – Elo P/N: E538507 Slim Self-Service Countertop Stand (75mm or 100mm VESA) – Elo P/N: E514693 Slim Self-Service Floor Stand (75mm or 100mm VESA) – Elo P/N: E514881 + E515260 1.8 m USB-C Cable Kit – includes VGA, USB, HDMI and audio cables (FHD Model only) – Elo P/N: E408388 Elo Backpack® 4 (Value Model) – Elo P/N: E393754 Elo Backpack® 4 (Standard Model) – Elo P/N: E393359 North America Power Cable C5 (FHD model only) – Elo P/N: E793990 Australia Power Cable C5 (FHD model only) – Elo P/N: E794186 Europe Power Cable C5 (FHD model only) – Elo P/N: E794376 Korea Power Cable C5 (FHD model only) – Elo P/N: E794574 China Power Cable C5 (FHD model only) – Elo P/N: E794756 Taiwan Power Cable C5 (FHD model only) – Elo P/N: E794957 Japan Power Cable C5 (FHD model only) – Elo P/N: E795147 Power Brick – 36W (FHD model only) – Elo P/N: E593458 Power USB to USB-B/DC-IN (2.5 mm) cable – 1.8 m – Elo P/N: E752302 Power USB to USB-B/DC-IN (2.5 mm) cable – 3 m – Elo P/N: E763022 |
