Features & Benefits
Easily integrated

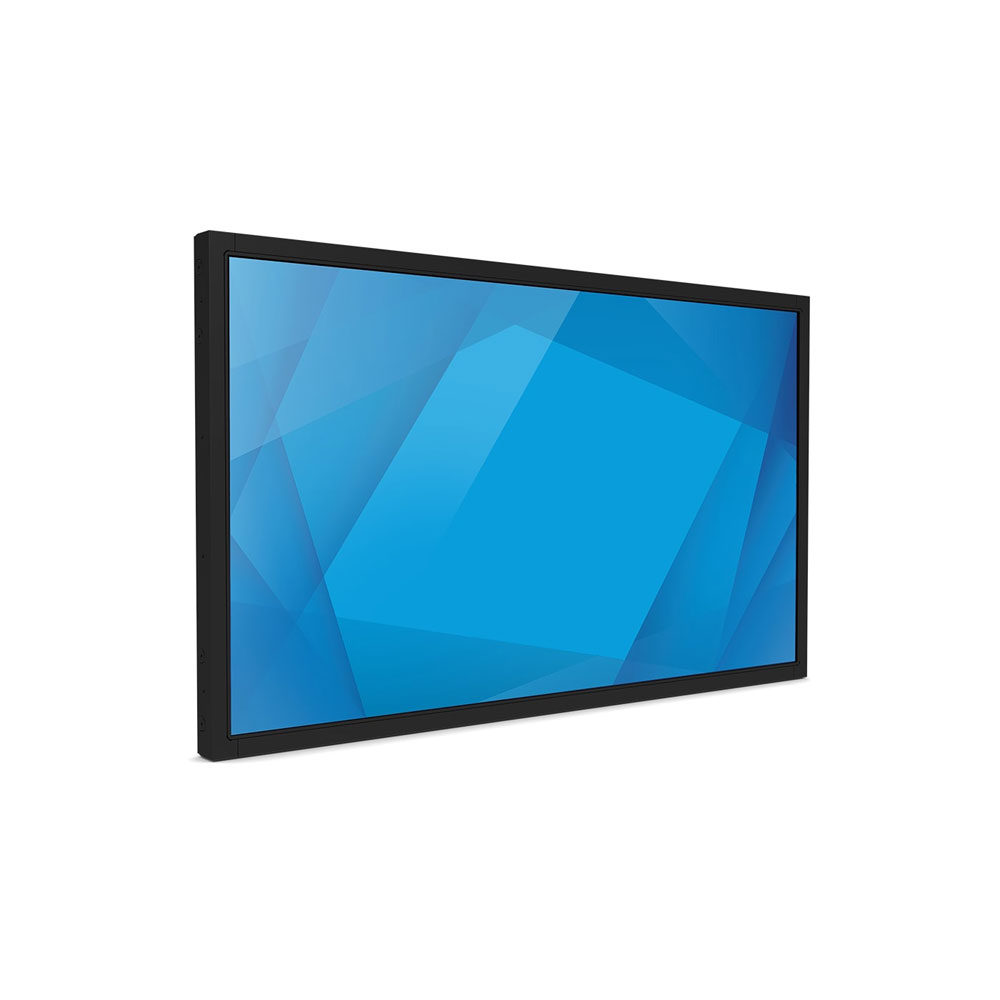

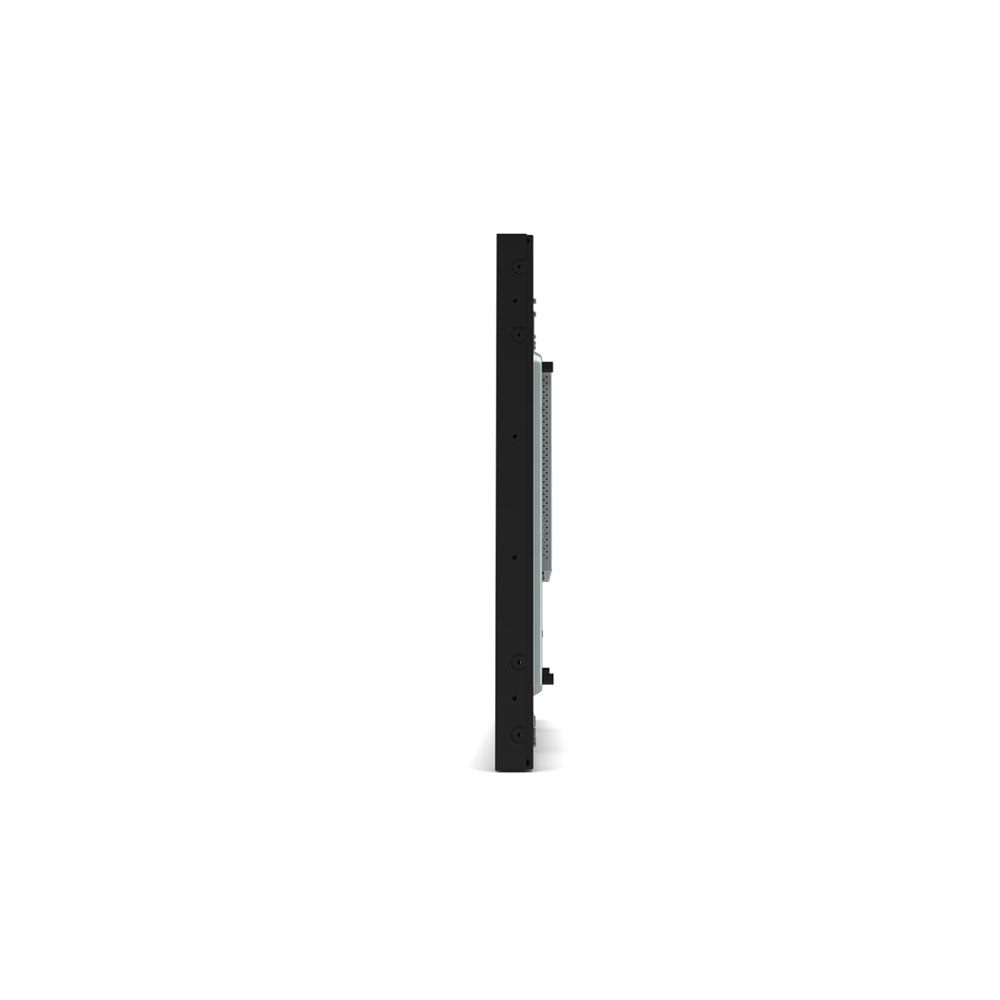

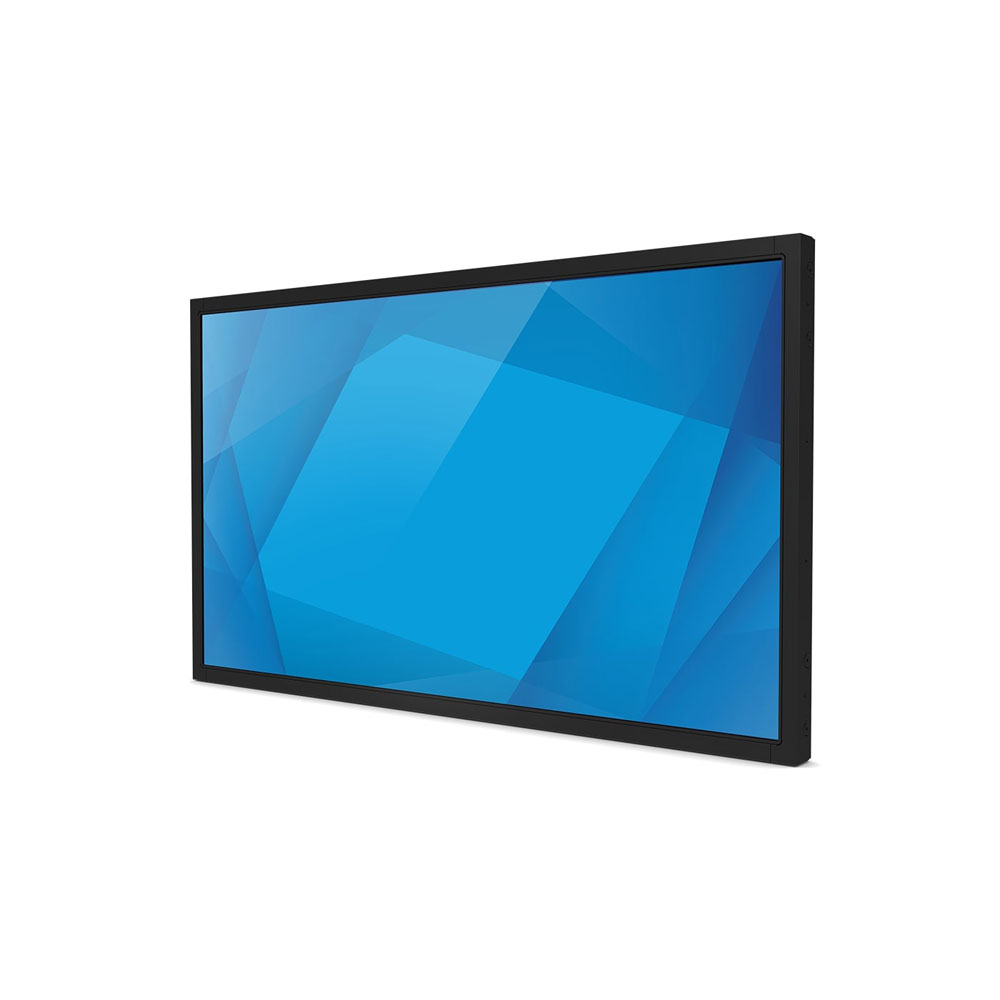

Featuring a compact form factor and optional rack- and front-mount bezels, the 4243L is easy to integrate. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With design and tooling being controlled by Elo, long-lasting product availability, as well as backwards compatibility, can be expected helping to minimize enclosure costs.
Touch ready
The 4243L is available with a choice of dual- or multi-touch technologies as well as a non-touch option. IntelliTouch® surface acoustic wave (SAW) dual-touch offers the ultimate in optical quality. All 4243L touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance. With the touchscreens being scratch-resistant, it is nearly impossible to physically wear them out.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
Other features.
- 1920 x 1080 full HD provides a bright, high contrast display with a wide viewing angle that easily attracts and holds the user’s attention
- Worldwide agency approvals and a three-year standard warranty extendable to five years
- Multiple mounting options are available
- Integrated power supply
Specifications
| Part Number(s) | IntelliTouch Dual Touch (Worldwide) – E000444 |
| Enclosure Color | Black |
| Touch Technology & Capacity | SAW (IntelliTouch® Surface Acoustic Wave) – Dual Touch |
| Diagonal Size | 42” diagonal, Active matrix TFT LCD (LED) |
| On Screen Display | Accessible through switches on the OSD Control Remote accessory. Controls (side): Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source Lockouts: OSD, Power RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time. See user manual for full details. |
| Aspect Ratio | 16:9 |
| Active Area | 36.6″ x 20.6″ / 930mm x 523mm |
| Resolution | 1920 x 1080 |
| Other Supported Resolutions | 640 x 480 at 60Hz 800 x 500 at 60Hz 800 x 600 at 56/60Hz 1024 x 768 at 60Hz 1280 x 720 at 60Hz 1280 x 960 at 60 Hz 1280 x 1024 at 60Hz 1360 x 768 at 60 Hz 1366 x 768 at 60 Hz 1440 x 900 at 60 Hz 1600 x 1200 at 60 Hz 1680 x 1050 at 60 Hz 1920 x 1080 at 60 Hz |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Number of Colors | 1073.7 million |
| Brightness (typical) | LCD panel: 500 nits IntelliTouch Dual Touch: 450 nits |
| Response Time-total (typical) | 8 msec |
| Contrast Ratio | 4000:1 |
| Input Video Format | Analog VGA, HDCP-capable HDMI 1.3 |
| Input Video Signal Connector | Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only) |
| Input Video Frequency | Horizontal: 31 – 80 KHz Vertical: 47 – 63 Hz |
| Power Supply | Internal AC |
| Input Voltage | AC: 100-240 VAC, 50/60 Hz |
| Input Connector | AC: IEC 60320 C14 |
| Maximum Operating Time | 24 hours/day |
| Power Consumption (Typical) | Monitor Only (Typical at 100V at 60Hz): ON: 72.87 W SLEEP: 0.24 W OFF: 0.16 W(Typical at 240V at 50Hz): ON: 74.38 W SLEEP: 0.45 W OFF: 0.35 W |
| Dimensions | 38.5″ x 22.6″ x 2.6″ / 978mm x 575mm x 65mm |
| Shipping Box Dimensions | 45.9″ x 33.7″ x 11.02″ / 1168mm x 856mm x 280mm |
| Weight (Unpackaged) | 44 lbs / 20 kg |
| Weight (Packaged) | 61 lbs / 27.67 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 50°C / -4°F to 122°F |
| Humidity | Operating: 20% to 80% Storage: 10% to 95% |
| Sealability | Touchscreen sealed to bezel Touchscreen sealed to LCD |
| MTBF | 50,000 hours demonstrated |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage + AUR – Elo P/N: E740135 5 year warranty coverage + AUR – Elo P/N: E740330 |
| Regulatory approvals and declarations | Australia RCM Canada cUL, IC China CCC, China RoHS Europe CE Japan VCCI Korea KCC e-standby Mexico NOM, CoC Taiwan BSMI United States UL, including UL 62368-1, FCC International CB Russia EAC |
| Mounting Options | Mounting Options 400, 400, 6mm VESA mount Side mounting brackets included |
| What’s in the Box | 4243L QIG EEI Label OSD Remote HDMI Cable VGA Cable USB Cable (Type A to B) Power Cable IEC 60320-C13 (NA plug) Power Cable IEC 60320-C13 (EU/KR plug) Power Cable IEC 60320-C13 (UK plug) Power Cable IEC 60320-C13 (AR plug) Power Cable IEC 60320-C13 (CH plug) Power Cable IEC 60320-C13 (TW plug) Power Cable IEC 60320-C13 (JP plug) 3-pin to 2-pin adapter for JP power cable Side Mount Brackets x8 Side Mount Bracket Screws x16 |
| Options / Peripherals / Upgrades | Remote OSD (RJ45) – Elo P/N: E483757 Elo Backpack® – Elo P/N: E611864 IntelliTouch Stylus Pen – Elo P/N: D82064-000 Replacement Bracket Kit for 3243L IT model – Elo P/N: E727550 |
